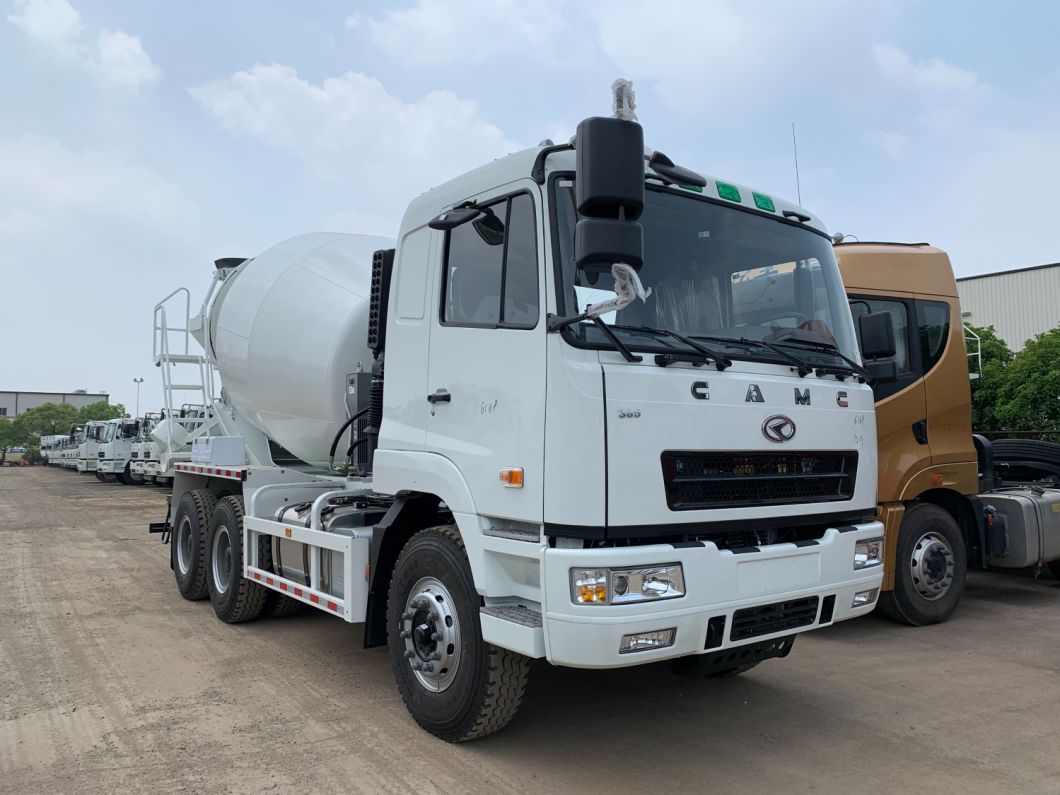

AH5382GJB Mixer Truck

Mixer truck

Introduction
With elegant and pleasing design, our 14 m3 concrete mixer trucks possess many advantages, such as stable and reliable slewing, speedy discharge, low surplus rate and handy operation. Concrete mixers adopt impored hydraulic accessories such as oil tank, radiator, filter and rubber hose connector. The driving system of the mixing drum adopts the closed-type hydraulic system pump. The motor and reducer of 14 m3 concrete mixer truck are imported from the US and Germany with original packaging. The mixing drum body and the helical vanes are all made of fine-grain abrasion-resistant steel plates. Those plates are specially used for the B520JJ mixing drum made by Shanghai Baosteel Company. All these ensure concrete mixers own a long usage life

Features of Concrete Mixer Truck (14 m3)
1.This mixing truck is used to mix cement, asphalt and other materials. It is broadly applied in construction industry both home and abroad.
2.Our 14 m3 concrete mixers are well received for smart appearance, good performance and convenient operating system.
3.This kind of concrete mixer truck is equipped with a famous engine such as Caterpillar and Cummins. There are two axles both in the front and back. It is very safe to be operated.
4.It is a professional and leading exporter of concrete mixers in China. Our company has a professional technical team, some of who have decades of working experience.

Main Parameters of 14 m3 Concrete Mixer Truck

Items Unit Parameters
Model   HDT5313GJB
Total Length mm 10850
Total Width mm 2496
Total Height mm 3980
Chassis   HOWO ZZ1317N3667C1
Total Vehicle Weight (Standard) kg 31000
Curb Weight kg 16600
Wheelbase mm 1800+3600+1350
Front Tread mm 2022/2041
Rear Tread mm 1830
Tyre Type   11.00-20/12.00-20
Front Overhang (mm) mm 1500
Rear Overhang (mm) mm 2600
Min. Turning Diameter (m) m ≤ 23
Max. Traveling Speed (km/h) km/h 90
Steering Mechanism   ZF8098
Oil Consumption per 100 km  (Under Limited Conditions) L 38
Engine Model   WD615.95 (E), WD615.96 (E)
Engine Type   In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine Or EGR
Cylinders and Arrangement   In-Line 6-Cylinder
Max. Power/Rotation kw/(r/min) 247/2200, 276/2200
Max. PTO Torque N. m 1350 / (1100-1600), 1500 / (1100-1600)
Geometric Volume of Mixing Drum m3 20.1
Max. Mixing Cubage (m3) m3 14
Mixing Drum Obliquity ° 10
Mixing Drum Rotating Speed r/min 0-14
Feeding Speed (m3) m3/min ≥ 3.5
Discharging Speed (≥ m3) m3/min ≥ 3
Slump mm 100-230
Leftover Rate % Nearly Zero
Water Tank Capacity (L) L 260/400
Max. Mixing Drum Diameter (mm)   Water Pump; Pneumatic Pump
