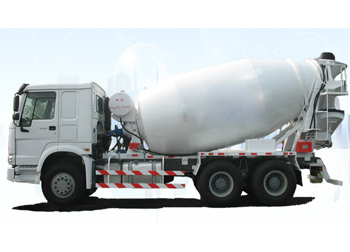

AH5382GJB Mixer Truck

Mixer truck

Introduction
10 m3 mixer truck adopts imported hydraulic accessories (such as oil tank, radiator, filter and rubber hose connector) to ensure that its hydraulic system enjoys a long usage life. The upper part of the truck-mounted concrete mixer adopts the shot blasting and baking finish technology. With elegant and pleasing design, the 10 m3 concrete mixer truck possesses many advantages such as stable and reliable slewing, speedy discharge, low surplus rate, handy operation and long service life. The moveable discharge chute of this truck-mounted concrete mixer can be locked at four different positions for discharge operations in different directions.

Usage
10 m3 mixer truck is typically used for mixing and transporting concrete mixture between long distances.

Advantages of 10 m3 Truck-Mounted Concrete Mixer
1.The mixing drum body and the double-logarithmic helical vanes are made of fine-grain abrasion-resistant steel plates specially used for the B520JJ mixing drum made by Shanghai Baosteel Company.
2.Our 10 m3 concrete mixer trucks can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.

Parameters of 10 m3 Truck-Mounted Concrete Mixer

Model   HDT5256GJB1 HDT5256GJB
Overall Length mm 9800 9880
Overall Width mm 2496 2496
Overall Height mm 3880 3920
Chassis Model   STAR-STYER ZZ1256N4046C1 HOWO ZZ1257N4048W
Total Vehicle Weight kg 25000 25000
Curb Weight kg 15000 15000
Wheelbase mm 4000+1350 4025+1350
Front Tread mm 1939/1958 2022/2041
Rear Tread mm 1800/1830 1830
Tyre Type   11.00-20/12.00-20 11.00-20/12.00-20
Front Overhang mm 1560 1500
Rear Overhang mm 2890 2980
Minimum Turning Diameter m ≤ 19.3 ≤ 20
Max. Traveling Speed km/h 90 86
Steering Mechanism   ZF8098 ZF8098
Oil Consumption per 100 km (Under Limited Conditions) L 36 36
Engine Model   WD615.95 (E), WD615.96 (E) P11C-UH, WD615.95
Engine Type   Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine
Cylinder Arrangement   6 Cylinders in Line 6 Cylinders in Line
Engine Power /Rotating Speed HP/(r/min) 336/2200,  375/2200 336/2200,  375/2200
Max. Engine Torque N.M 1350/ (1100-1600), 1500/ (1100-1600) 1420/1100, 1400/ (1300-1600)
Geometric Volume of Mixing Drum m3 16.8 16.8
Mixing Cubage m3 10 10
Mixing Drum Obliquity ° 12 12
Drum Rotating Speed r/min 0-14 0-14
Feeding Speed m3/min ≥ 3.5 ≥ 3.5
Discharging Speed m3/min ≥ 3 ≥ 3
Slump mm 100-230 100-230
Leftover Rate % Nearly Zero Nearly Zero
Water Tank Capacity L 260/400 260/400
Water Supply Mode   Water Pump (Standard Configuration); Pneumatic Pump (Self-Chosen Configuration) Water Pump (Standard Configuration); Pneumatic Pump (Self-Chosen Configuration)

Established in 2003, Auhui Hualing Automobile Co., Ltd is reckoned as a leading exporter of 10 m3 mixer trucks in China. In addition to this truck-mounted concrete mixer, we also supply heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our 10 m3 concrete mixer trucks are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC truck-mounted concrete mixers are well received by customers both home and abroad.
