Description

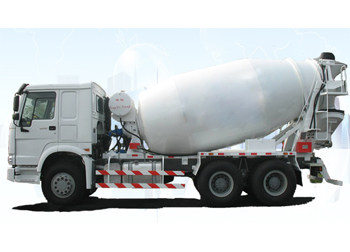

For 9 m3concrete mixer truck, the driving system of the mixing drum adopts the closed-type hydraulic system pump. Our company uses US and Germany motor and reducer with original packaging. This truck-mounted concrete mixer also adopts many imported hydraulic accessories, such as oil tank, radiator, filter and rubber hose connector. All these ensure that the hydraulic system of 9 m3concrete mixer truck owns a long service life. The mixing drum body and the helical vanes are both made of fine-grain abrasion-resistant steel plates specially used for the B520JJ mixing drum made by Shanghai Baosteel Company. In addition to this truck-mounted concrete mixer, we also provide heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and heavy axle for sale.
Applications of 9 m3Concrete Mixer Truck
9 m3 truck-mounted concrete mixer is mainly used for mixing and transporting concrete mixture between long distances. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.
Characteristics
1. Our 9 m3 concrete mixer trucks are preferred for smart appearance, good performance and convenient operating system.
2. This truck-mounted concrete mixer is configured with a famous engine such as Caterpillar and Cummins.
3. It is used to mix cement, asphalt and other materials and is widely used in construction industry.
4. This kind of concrete mixer truck has two axles both in the front and back. It is very safe to be operated.
5. Our company is a professional manufacturer of truck-mounted concrete mixers in China.
Technical Parameters of 9 m3 Mixer Truck
| Model | ZZ5256GJBM3846C (9290) | ZZ5257GJBM3847C (9290) | |
| HDT5258GJB (9336) | HDT5259GJB (9336) | ||
| Whole Vehicle Performance and Parameters | Chassis | STEYR King | HOWO |
| Curb Weight (kg) | 13000 | 13220 | |
| Total Vehicle Weight (kg) | 25000 | 25000 | |
| Outline Dimension (L × B × H) (mm) | 9200 × 2490 × 3800 | 9054 × 2496 × 3750 | |
| Wheelbase (mm) | 3800+1350 | 3825+1350 | |
| Front Overhang (mm) | 1560 | 1500 | |
| Rear Overhang (mm) | 2450 | 2375 | |
| Min. Clearance Above Ground (mm) | 314 | 314 | |
| Max. Traveling Speed (km/h) | 75 | 90 | |
| Min. Turning Diameter (m) | 19.6 | 19.3 | |
| Oil Consumption per 100 km (Under Limited Conditions) | ≤ 25 | ≤ 25 | |
| Vehicle Configuration | Clutch | Dry Single Disc Clutch (φ430) | Dry Single Disc Clutch (φ430) |
| Gear Box | SINOTRUCK HW18709 | SINOTRUCK HW18709 | |
| Driving Type | 6 × 4 | 6 × 4 | |
| Steering Mechanism | ZF8098 | ZF8098 | |
| Service Brake | Dual-Circuit Air Brake | Dual-Circuit Air Brake | |
| Parking Braking | Spring-Powered Air-Cut-Off Brake | Spring-Powered Air-Cut-Off Brake | |
| Auxiliary Brake | Engine Exhaust Brake | Engine Exhaust Brake | |
| Tyre | 12.00 (R)-20 | 12.00 (R)-20 | |
| Engine Parameters | Model | WD615.95 (E) | WD615.95 (E) |
| Type | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine | |
| Emission Standard | China III, Euro III | China III, Euro III | |
| Max. Power (kw) | 290 HP, 336 HP (2200 r/min) | 290 HP, 336 HP (2200 r/min) | |
| Max. Torque | 1350 N. m | 1350 N. m | |
| Mixing Drum Parameters | Geometric Volume of Mixing Drum (m3) | 14.7 | 14.7 |
| Max. Mixing Cubage (m3) | 9-10 | 9-10 | |
| Feeding Speed (m3) | ≥ 3.5 | ≥ 3.5 | |
| Discharging Speed (≥m3) | ≥ 1.5 | ≥ 1.5 | |
| Leftover Rate | Nearly Zero | Nearly Zero | |
| Max. Rotating Speed (r/min) | 14-16 | 14-16 | |
| Mixing Drum Obliquity (°) | 13.5 | 13.5 | |
| Max. Mixing Drum Diameter (mm) | φ2162 | φ2162 | |
| Driving System | Speed Reducer | Italian BONFILI-577L | Italian BONFILI-577L |
| Hydraulic Pump | US EATON5423-518 | US EATON5423-518 | |
| Hydraulic Motor | US EATON5433-138 | US EATON5433-138 | |
| Radiator | German AKG with Vacuum Meter | German AKG with Vacuum Meter | |
| Water Supply System | Water Tank Capacity (L) | 260 | 260 |
| Water Supply Mode | Water Pump; Pneumatic Pump | Water Pump; Pneumatic Pump | |
