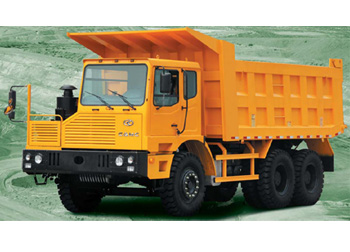

Model HN3501 Mining Gas Dumper 6×4
Summary Based on existing mining dumper, our company applies the world advanced fuel engine into mining dumper and forms the Hualing mining gas dumper, which provides higher economic benefits and environmental protections for users.
Engine model Hangfa WT615.95 Weichai P12NG380E40
Rated output/speed(kw/ r/min) 250/2200 280/2200
Max torque/speed(N.m/ r/min) 1350/1200-1600 1500/1400-1600
Gearbox Fast RTD11509C or 9JS180
Hydraulic lifting structure Complete set from Hayward (including pump, cylinder, valve etc.)
Overall dimension (L × W × H)(mm) 8470×3080×3750
Inside dimension of container (L × W × H) 5400×2900×1470
Effective volume of container(m3) 23
Container form Standard configuration: flat bottom; option: tail-raising
Drive form of CAMC Heavy Truck Mining Dumper Series 6×4
Axle base(mm) 3675+1500
Minimum ground clearance(mm) 360
Approach angle/departure angle(o) 31/55
Max total mass(kg) 50000
Complete truck curb mass(kg) 20000
Loading mass(kg) 30000
Max speed(km/h) 50
Front axle/drive axle Axle from Meritor (speed ratio 11.04; optional speed ratio 11.39)
Tire 13.00-25(14.00-24 for option)
Fuel ——
Max grade ability (%) 40
Lifting time(s) ≤25
Max angle of inclination(o) 50
Paint color Yellow and green (two colors for option)
