Description

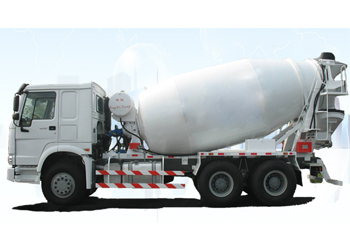

For 6 m3 mixer truck, all the quick-wearing parts like the feed hopper and discharge chutes which have much contact with concrete are equipped with abrasion-resistant steel plates. This can correspondingly ensure that this concrete mixer has a long service life. There are many mixing arms in the mixing drum. There are also square and round holes scientifically arranged in the mixing vanes. 6 m3 mixer trucks realize the actual three-dimensional mixing of concrete in the mixing drum. There is nearly no discharge surplus and concrete eduction is also greatly avoided. The moveable discharge chute of this concrete mixer can be locked at four different positions for discharge operations in different directions. The upper part of the mixer truck adopts the shot blasting and baking finish technology. With elegant and pleasing design, 6 m3 truck-mounted concrete mixing truck enjoys many advantages, such as stable and reliable slewing, speedy discharge, low surplus rate, handy operation and long service life.
Main Parameters of 6 m3Concrete Mixer
| Model | HDT5257GJB1 | |
| Whole Vehicle Performance and Parameters | Chassis | STEYR KING ZZ1256N3246C |
| Curb Weight (kg) | 12600 | |
| Total Vehicle Weight (kg) | 25000 | |
| Outline Dimension (L × B × H) (mm) | 7850 × 2490 × 3730 | |
| Wheelbase (mm) | 3225+1350 | |
| Front Overhang (mm) | 1562 | |
| Rear Overhang (mm) | 1720 | |
| Min. Clearance Above Ground (mm) | 297 | |
| Max. Traveling Speed (km/h) | 75 | |
| Min. Turning Diameter (M) | 16 | |
| Oil Consumption per 100 km (under limited conditions) | ≤ 32 | |
| Vehicle Configurations | Clutch | Dry Single Disc Clutch (φ430) |
| Gear Box | SINOTRUCK HW18709 | |
| Driving Type | 6 × 4 | |
| Steering Mechanism | ZF8098 | |
| Service Brake | Dual-Circuit Air Brake | |
| Parking Braking | Spring-Powered Air-Cut-Off Brake | |
| Auxiliary Brake | Engine Exhaust Brake | |
| Tyre | 12.00 (R)-20 | |
| Engine Parameters | Model | WD615.95 (E); WD615.96 (E) |
| Type | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine | |
| Emission Standard | Euro III | |
| Discharge Capacity (L) | 9.726L | |
| Power (kw) | 290 HP, 336 HP (2200 r/min) | |
| Max. Torque | 1350 N. m (1100-1600 r/min) | |
| Mixing Drum Parameters | Geometric Volume of Mixing Drum (m3) | 9.96 |
| Max. Mixing Cubage (m3) | 6 | |
| Feeding Speed (m3) | ≥ 3 | |
| Discharging Speed (≥ m3) | ≥ 1.5 | |
| Leftover Rate | ≤ 0.5% | |
| Max. Rotating Speed (r/min) | 14-16 | |
| Mixing Drum Obliquity (°) | 15 | |
| Max. Mixing Drum Diameter (mm) | φ2162 | |
| Driving System | Geometric Volume of Mixing Drum (m3) | Italy BONFILI-575 |
| Max. Mixing Cubage (m3) | US EATON4623-552 | |
| Feeding Speed (m3) | US EATON4633-045 | |
| Discharging Speed (≥ m3) | Germany AKG with Vacuum Meter | |
| Water Supply System | Water Tank Capacity (L) | 260 |
| Water Supply Mode | Water Pump or Pneumatic Pump | |
Established in 2003, Auhui Hualing Automobile Co., Ltd is a professional manufacturer and supplier of 6 m3 mixer trucks in China. In addition to this concrete mixer, our products also cover heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, auto parts assembly series such as heavy axles, and so on. With decades of production and sale experience, our 6 m3 mixer trucks are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. Concrete mixers or concrete mixing trucks are well received by customers both home and abroad.
