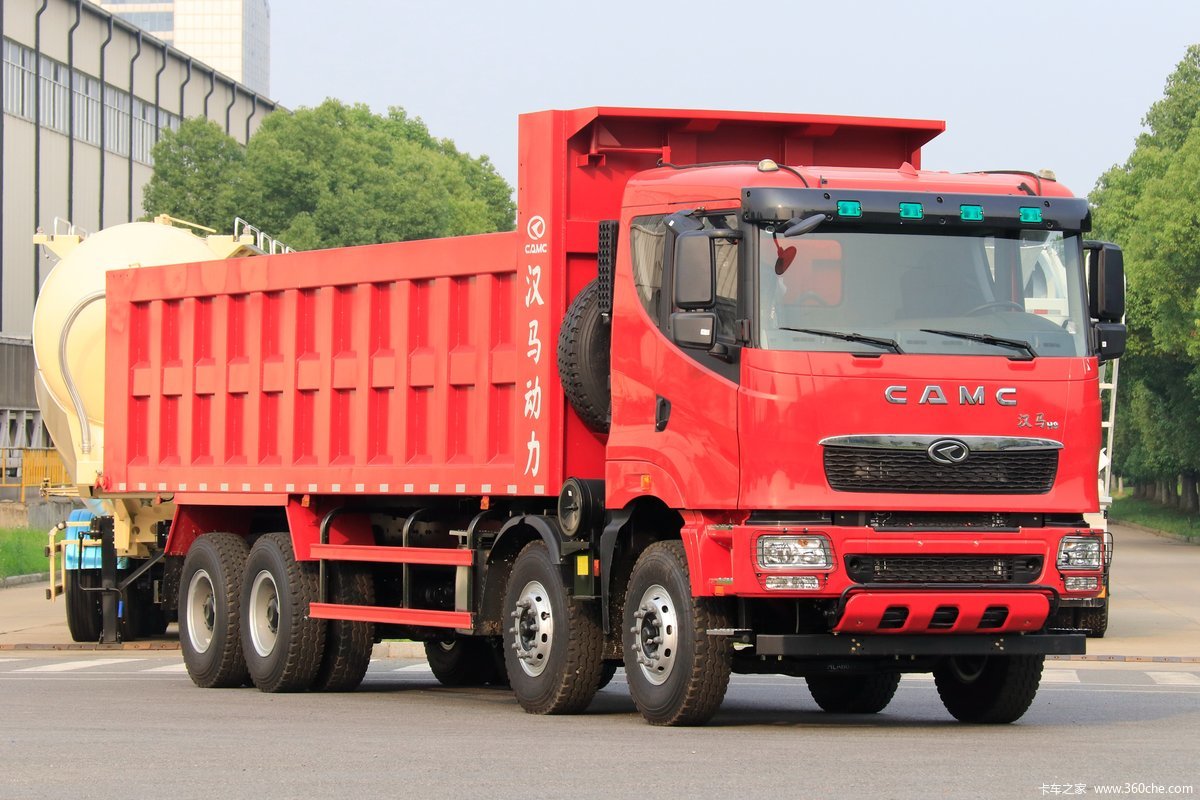

SH3310P34DLM Dump Truck

The company boasts four production lines of punch, welding, painting and general assembly in the area of 300,000 square meters. It imported from Japan a 5000T heavy punching machine which ensures the stringpiece of the car frame to be shaped with only one punch. In addition, there are two bodywork punch lines (line A and line B) of ten 600-1500 T heavy punching machines
Dump truck
Introduction of Dump truck:

1. SH3310P34DLM dump truck is a kind of special vehicle used in construction industry both China and abroad.
2. Dump truck is used to transport construction material such as sand and gravel. The dump truck is popular with practical function.
3. SH3310P34DLM dump truck uses famous Caterpillar Engine. Our dump truck is manufactured with beautiful appearance and large capacity. This dump truck is produced with maneuverable operating system.
Specifications of Dump truck:
Model SH3310P34DLM
Overall Dimension 10550*2495*3360 mm
Kerb mass 14970kg
Tread 2065/2065/1860/1860 mm
Min. Ground clearance 255mm
Nominal payload Front Axle load 7500 kg
Rear Axle load 2*13000 kg
Permission payload 26,000kg
Engine Model Caterpillar C13-430, 430SH
Deck dimension 7500*2300*1500mm
No. of Axle 4
Wheelbase 1850+4,000+1350 (mm)
No. of Seat 3
