Description:

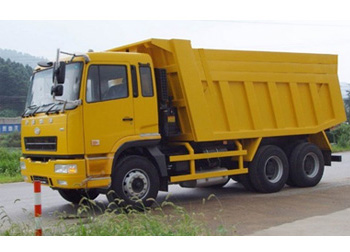

This mining dump truck 6×4 is developed for mine working condition completely and applied to the transportation of open pit mine, reclamation works, steel works, hydropower construction site and port works. CAMC heavy truck mining dump truck series has a large loading capacity and excellent performance. As a China dump truck supplier, at present, we have got high reputation in the international market and have been largely exported to North Europe, Africa and Middle East, etc.
| Model | HN3600 mining dump truck | ||
| Summary | Hualing mining dump truck is a high-end off-highway dump truck created by Anhui Hualing Automobile Co., Ltd with international advanced technology, specific to various mines and hydropower engineering. | ||
| Engine model | HangfaWD615.47 | Hangfa WD615.69 | Yuchai YC6M375L-T20 |
| Rated output/speed(kw/ r/min) | 273/2200 | 247/2200 | 275/2100 |
| Max torque/speed(N.m/ r/min) | 1500/1100-1600 | 1350/1100-1600 | 1500/1400-1600 |
| Gearbox | Fast 9JS180 | ||
| Hydraulic lifting structure | Complete set from Hayward (including pump, cylinder, valve etc.) | ||
| Overall dimension (L × W × H)(mm) | 8670×3130×3690 | ||
| Inside dimension of container (L × W × H) | 5500×2950×1600 | ||
| Effective volume of container(m3) | 26.4 | ||
| Container form | Standard configuration: flat bottom; option: tail-raising | ||
| Drive form of CAMC Heavy Truck Mining Dump truck Series | 6×4 | ||
| Axle base(mm) | 3775+1500 | ||
| Minimum ground clearance(mm) | 360 | ||
| Approach angle/departure angle(o) | 31/52 | ||
| Max total mass(kg) | 63000 | ||
| Complete truck curb mass(kg) | 23000 | ||
| Loading mass(kg) | 40000 | ||
| Max speed(km/h) | 50 | ||
| Front axle/drive axle | High-strength punch welding I-beam/high-strength inblock-casting axle from Meritor (speed ratio 11.39) | ||
| Tire | 13.00-25(14.00-24for option) | ||
| Max grade ability (%) | 40 | ||
| Lifting time(s) | ≤25 | ||
| Max angle of inclination(o) | 50 | ||
| Paint color | Yellow and green (two colors for option) | ||
