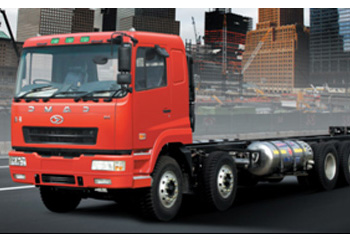

LNG Cargo Truck 8×4

Relevant Dimensions(mm) Motive Power of LNG Cargo Truck 8×4
Model              LNG Cargo Truck 8×4 Engine model SC9DT320Q3 WP12NG350E30
Axle base 1850+4605+1350 Pattern Orthostichous, six-cylinder Orthostichous, six-cylinder
Overall length 11980   Electric cabinet mixing, spark plug ignition Electric cabinet mixing, spark plug ignition
Overall width 2495 Rated output/speed(kw/r/min) 235/2200 257/2200
Overall height 3560 Max torque/speed(Nm/r/min) 1250/1400 1400/1400-1600
Container length 9600 Cylinder diameter x stroke(mm) 114×144 126×155
Container width 2300 Air inlet method supercharge inter-cooling supercharge inter-cooling
Container height 600/800 Displacement(L) 8.62 11.59
Overall front suspension 1370 Idling speed 650±25 700
Overall rear suspension 1905 Cooling method Liquid cooling                            Liquid cooling
ground clearance from saddle _____ Max net power/speed 233/2200 274/2200
Frame height 314 Fuel NG NG
Frame width 940/850 Noise <93 <93
Front/rear track base 2065/1860 Discharge Euro-3 Euro-3

Weight Parameters(kg) Steering System of Cargo Van 8×4 Clutch System
Overall mass 11940

Diverter

ø100 Pattern ø430 Clutch
Chassis kerb mass 10040 Steering kinetic pump Liquid pump Control system Hydraulic pneumatic control
Loading mass (announcement) 18865
Overall weight (announcement) 31000
Transmission Performance Brake System of LNG Cargo Truck Other Parameters
Top speed(km/h) 110 km/h Pattern Double-circuit pneumatic braking Tire model 11.00R20
Max grade ability 30% Brake type Drum-type braking

Air tank volume

960M³
Gearbox model RT-11509F Parking braking Spring-type Battery apacity 135 Ah
Gearbox gears 9 Emergency braking Spring-type
Speed ratio of drive axle 4.44
