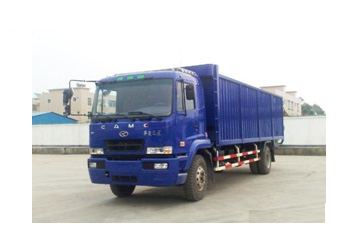

CAMC Lightweight Cargo Truck 4×2
Main Parameters:
| Type of Cargo Truck |
CAMC Lightweight Cargo Truck 4×2 |
| Wheel Base |
5600 |
| Overall Length |
10000 |
| Overall Width |
2500 |
| Overall Height |
3850 |
| Warehouse Length |
7700 |
| Warehouse Width |
2400 |
| Warehouse Height |
2400 |
| Front Overhang |
1370+75 |
| Rear Overhang |
3030 |
| Frame Ground Clearance |
1128 |
| Frame Height |
278 |
| Frame Width |
940/842 (front/rear) |
| Wheelbase of CAMC Classic Van 4×2 |
2065/1860 |
| Power of Cargo Truck |
| Engine Type |
YC6J180-33 |
| Pattern |
In-line, Water Coiling, Six-Cylinder |
| Oil Feeding System |
Inner EGR |
| Rated Power/Rotate Speed (KW/r/min) |
132/2500 |
| Max. Torque/Rotate Speed (Nm/r/min) |
590/(1400-1700) |
| Cylinder Diameter×Stroke (mm) |
105×125 |
| Admission Method |
Inter-Cooling |
| Output Volume (L) |
6.494 |
| Idling Speed |
700~750 |
| Way of Cooling |
Water-Cooling |
| Max.Net Power/Rotate Speed (KW/r/min) |
128/2500 |
| Max.Net Power/Rotate Speed Fuel Feeding |
0.0843 |
| Noise Db(A) |
<93 |
| Emission |
Euro-3 |
| Weight (kg) of Cargo Truck |
Steering System of Van 4×2 |
Clutch System of Stake Truck |
| Curb Weight |
7805 |
Redirector |
ø100 |
Type |
ø395 Pusher Clutch |
| Chassis Curb Weight |
6100 |
Power Steering Pump |
Liquid Pump |
Control System |
Hydraulic and Aerodynamic Pressure |
| Carrying Capacity (announcement) |
8000 |
|
|
|
|
| Total Weight |
16000 |
|
|
|
|
| Transmission Performance |
Brake System of CAMC Classic Van Cargo Truck 4×2 |
Other Parameters |
| Top Speed |
105 km/h |
Type |
Double Loop Pressure Braking |
Type of Tires |
11.00-20 |
| Max Gradient |
25% |
Type of Brake |
Drum Brake |
Fuel Tank Capacity (L) |
380L |
| Model of Gearbox |
7DS100 |
Parking Brake |
Spring Type |
Capacity of Batteries (Ah) |
135 Ah |
| Gears |
7 |
Emergency Brake |
Spring Type |
|
|
| Drive Axle Ratio |
4.44 |
|
|
|
|
