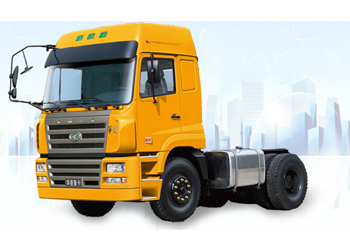

CAMC Lightweight Tractor

Main Parameters:
Relevant Dimensionsmm
Type Lightweight Tractor 4×2
Wheel Base 3400
Overall Length 5790
Overall Width 2495
Overall Height 3560
Warehouse Length
Warehouse Width
Warehouse Height
Front Overhang 1370+75
Rear Overhang 1020
Frame Ground Clearance 1360
Frame Height 278
Frame Width 940/842(front/rear)
Wheelbase 2065/1860

Power of CAMC Lightweight Tractor 4×2
Engine Type WP10.310E32 SC9DK310Q381
Pattern In-line, Water Coiling, Six-cylinder In-line, Water Coiling, Six-cylinder
Oil Feeding System Inner EGR Inner EGR
Rated Power/Rotate Speed (KW/r/min) 225/2200 228/2200
Max. Torque/Rotate Speed (Nm/r/min) 1250/1200-1600 1250/1400
Cylinder Diameter×Stroke (mm) 126×130 114×144
Admission Method Inter-cooling Inter-cooling
Output Volume (L) 9.726 8.82
Idling Speed 600±50 700±50
Way of Cooling Water-cooling Water-cooling
Max.Net Power/Rotate Speed (KW/r/min) 221/2200 225/2200
Max.Net Power/Rotate Speed Fuel Feeding 0.181 0.183
Noise Db(A) <93 <93
Emission Euro-3 Euro-3

Weight (kg) Steering System of CAMC Lightweight  Tractor 4×2 Clutch System
Curb Weight 6955 Redirector ø100 Type ø430 pusher clutch
Overall Weight 42000 Steering Kinetic Pump Liquid Pump Control System Hydraulic Pneumatic Control
Overall Mass of Quasi-tractor 34850
Transmission Performance Brake System Other Parameters of CAMC Lightweight  Tractor 4×2
Top Speed 120 km/h Type Double-loop Pneumatic Braking Type of Tires 11.00R22.5
Max Gradient 25% Type of Brake Drum Brake Fuel Tank Capacity (L) 380L
Model of Gearbox RTO-11509F Parking Brake Spring Type Capacity of Batteries (Ah) 135 Ah
Gears 9 Emergency Brake Spring Type
Drive Axle Speed Ratio 4.44
