HomeProductsMixer truck 16 m3 Mixer Truck
AH5382GJB Mixer Truck

Mixer truck

Description

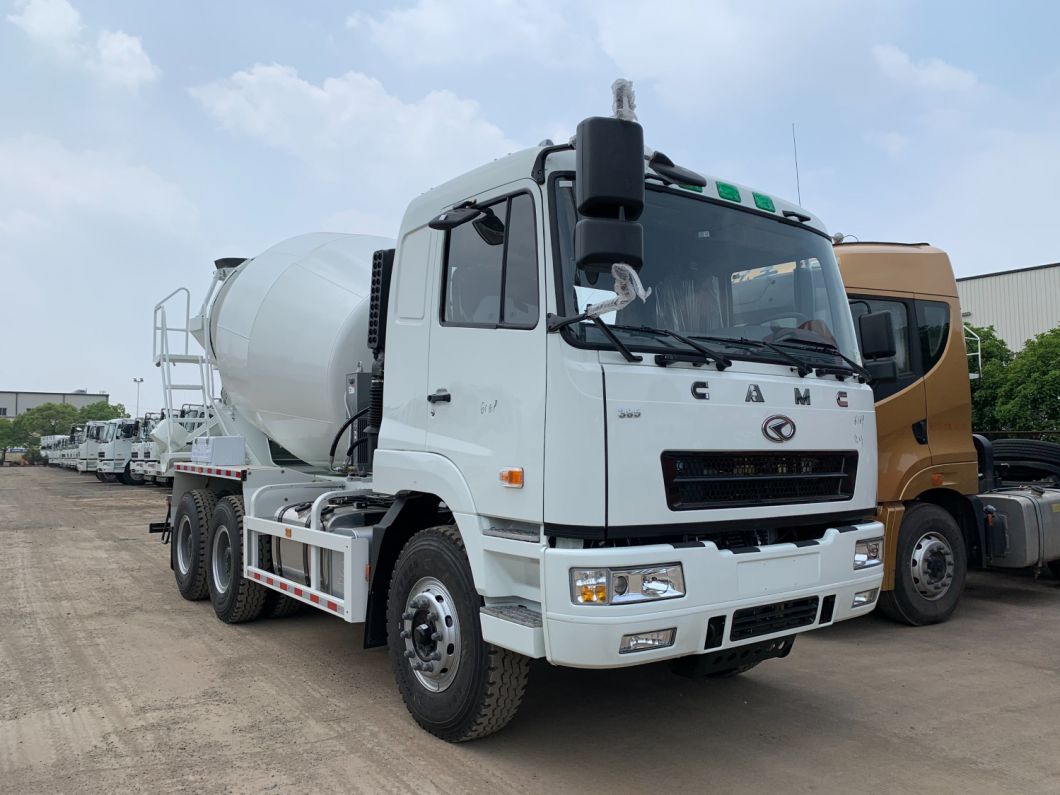

16 m3 concrete mixer is mainly used for mixing and transporting concrete mixture between long distances. It is able to mix cement, asphalt and other materials and is widely used in construction industry both home and abroad. Our mixer trucks are preferred for smart appearance, good performance and convenient operating system.

Features of Concrete Mixer (16 m3)
1. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.
2. This mixer truck is configured with a famous engine such as Caterpillar and Cummins.
3. It is a professional manufacturer of truck-mounted concrete mixers in China.
4. This truck has two axles both in the front and back. It is very safe to be operated.

Technical Parameters of 16 m3 Mixer Truck

Whole Vehicle Performance and Parameters Items Unit Parameters
16 m3 (HOWO-8 × 4 Chassis)
Model   HDT5313GJB (16375)
Total Length mm 10850
Total Width mm 2496
Total Height mm 3980
Chassis Model   HOWO-ZZ1317N3667C1
Total Vehicle Weight (Standard) kg 31000
Curb Weight kg 16600
Wheelbase mm 1800+3600+1350
Front Tread mm 2022
Rear Tread mm 1830
Front Overhang (mm) mm 1500
Rear Overhang (mm) mm 2600
Min. Turning Diameter (m) m 11.5
Max. Traveling Speed (km/h) km/h 90
Steering Mechanism   ZF8098 (German)
Gear Box   HW18709
  Engine Oil Consumption per 100 km  (Under Limited Conditions) L ≤ 31
Model   WD615.95, WD615.96, WD615.95E, WD615.96E
Type   In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine
Max. Power KW 375 HP (2200 r/min)
Max. Torque N. m 1350; 1500
Max. PTO Torque N. m 600 (1100-1400 r/min)
Emission Standard   China III, Euro III
Working Device Geometric Volume of Mixing Drum m3 24.1 m3
Max. Mixing Cubage (m3) m3 16
Mixing Drum Obliquity ° 10°
Mixing Drum Rotating Speed r/min 0-14
Feeding Speed (m3) m3/min ≥ 3.5
Discharging Speed (≥ m3) m3/min ≥ 1.5
Slump mm 100-230
Leftover Rate % Nearly Zero
Water Tank Capacity (L) L 260
Max. Mixing Drum Diameter (mm) mm φ2412 mm
Water Supply Mode   Water Pump; Pneumatic Pump

Established in 2003, Auhui Hualing Automobile Co., Ltd is a leading supplier and exporter of 16 m3 concrete mixers in China. In addition to this mixer truck, our products also cover heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our 16 m3 truck-mounted concrete mixers are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc.
