Description

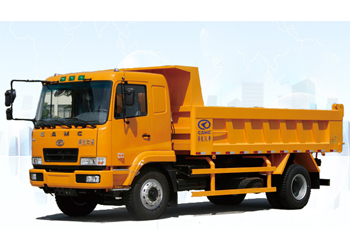

CAMC is the sole brand to be treated as the model of heavy-duty industry twice. 4×2 dump truck consists of cab, engine, transmission, front axle, rear axle, tire and other spare parts. It possesses luxurious and elegant appearance. This tipper truck is in strict accordance with safety requirements that guarantees the complete protection to drivers and passengers. Due to the good performance of each component, 4×2 dump trucks can meet customers’ specific transportation requirements. In addition, we also supply 6×4 and 8×4 models. With the annual production capacity of 100,000 sets, CAMC has already formed the high-end 4×2 tipper truck represented by Xingkaima, the middle and high-end series products represented by CAMC heavy dump truck and the middle-end series products represented by CAMC Star. Our self-discharging trucks are able to satisfy users’ different demands at different levels both home and abroad.
Technical Specifications of CAMC 4×2 Tipper Truck
| Product Name | Dump Truck | |
| Product Model | HN3120Z24D8M3 | |
| Place of Origin | Maanshan, Anhui, China | |
| Kerb Mass | 10 ton | |
| Rated Payload | 15-20 ton | |
| Drive Type | Left-Hand (Optional RHD) | |
| Drive Model | 4 × 2 | |
| Vehicle Body Color | Yellow (Optional) | |
| Overall Dimension (L × W × H) mm | 7020 × 2500 × 3300 | |
| Body Interior (mm) | 4800 × 2300 × 1200 | |
| Engine | Brand | YUCHAI |
| Model | YC6A240-33 | |
| Max. Power (kw/r/min) | 177/2300 | |
| Max. Torque (N. m/r/min) | 900/1400-1600 | |
| No. of Cylinder | 6 | |
| Bore × Stroke (mm) | 108 × 132 | |
| Displacement | 7255 ml | |
| Control Type | Mechanical | |
| Air Cleaner | Dry Paper Element | |
| Emission Standard | Euro II | |
| Clutch | Type | Hydraulic Control with Air Assisted |
| Plate Diameter | Dry Single Plate with Diaphragm Outside Diameter: 430 mm | |
| Transmission | Brand | FAST GEAR |
| Model | 8JS118 (8-speed & 1-reverse) | |
| Type | Mechanical | |
| The Number of Axles | 2 | |
| Rear Axle (Drive Axle)-Load | 16000 kg | |
| Front Axle-Load | 7500 kg | |
| Cabin Type | Classic Flat-Roof (Optional EF, CH, EH) | |
| Cabin | With A/C, Radio, MP3, Bunk | |
| Brake System | Service | Full Air Brake Dual Circuit |
| Parking | Spring Actuator at Rear Wheels | |
| Auxiliary | Exhaust Break | |
| Steering System | Recirculation Ball with Integral Power Assisted by Oil | |
| Wheelbase (mm) | 3800 | |
| Wheel/Tire | Type | Bias/Radial Tube/Radial Tubeless |
| Model (Optional) | 11.00-20/11.00R20/11R22.5 12.00-20/12.00R20/12R22.5 | |
| Tire Number | 6+1 | |
| Fuel Tank | Volume (L) | 300 |
| Body Steel Thickness | Bottom: 8 mm; Side: 5 mm | |
| Body Lifting System | Hydraulic Central Lift | |
| Front Overhang/Rear Overhang (mm) | 1370/1750 | |
| Approach/Departure Angle (°) | 23/26 | |
| No. of Steel Spring (Front/Rear) | 9/12 | |
| Max. Speed (km/h) | 75 | |
Auhui Hualing Automobile Co., Ltd is a professional manufacturer of heavy dump trucks in China. In addition to tipper truck, our products also cover tractor truck, cargo truck, mixer truck, special vehicle chassis, heavy axle, and so on. As one of the first batch of enterprises of National Automobile Export Base and the fourth batch of Innovation-Oriented Technical Experimental Enterprises under Ministry of Science and Technology, our company possesses the enterprise technological center, postdoctoral scientific research workstation approved by the state, first-class complete and parts research and development facilities and four international advanced production lines. Our 4×2 dump trucks or tipper trucks are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC self-discharging trucks are well received by customers both home and abroad.
