Description

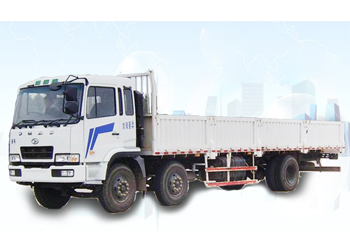

6×4 cargo truck is one of mature products of CAMC. It is featured with high reliability, high load capacity and high comfortableness. This flatbed truck is typically suitable for medium and long distance transportation for cargos and goods. CAMC cargo truck is quite famous for strong power, low oil consumption, stable performance and multiple personalized configurations. 6×4 cargo truck is made up of cab, engine, transmission, front axle, rear axle, tire and other spare parts. Due to each component’s good performance, this flatbed truck can meet different transportation requirements.
Features
1. Its design is flexible, convenient and economic.
2. CAMC 6×4 cargo truck enjoys the advantages of compact structure, elegant line, wide vision, big door opening angle and cab tilting angle, easy maintenance, and so on.
3. This flatbed truck is also famous for its ergonomically designed driver’s space that harmoniously combines functionality with efficiency.
Technical Specifications of 6×4 Cargo Truck
| Product Name | Cargo Truck | |
| Product Model | HN1240P29E2M3 | |
| Place of Origin | Maanshan, Anhui, China | |
| G. V. W | 25 ton | |
| Kerb mass | 11.5 ton | |
| Payload | 13.5 ton | |
| Drive Type | Left Hand (Optional RHD) | |
| Drive Model | 6 × 4 | |
| Engine | Brand | CUMMINS |
| Model | L290 30 | |
| Max. Power (kw/r/min) | 213/2200 | |
| Displacement | 8300 ml | |
| Emission Standard | Euro II | |
| Clutch | Model | Φ430 diaphragm spring |
| Transmission | Brand | FAST GEAR |
| Model | 9JS119 | |
| Rear Axle (Drive Axle)-Load | 13 ton × 2 | |
| Front Axle-Load | 7.5 ton | |
| Cabin Type | European Flat Roof (Optional CF, CH, EH) | |
| Cabin | With A/C, Radio, Bunk | |
| Steering System | HITACHI | |
| Wheelbase (mm) | 5220+1350 | |
| Wheel/Tire | Type | Bias/Radial |
| Model | 11.00-20/11.00R20/12.00-20/12.00R20 | |
| Tire Number | 10+1 | |
| Oil Tank | Volume (L) | 320 |
| Dimensions (L × W × H) | Overall (mm) | 11980 × 2495 × 3040 |
| Body Interior (mm) | 8700 × 2300 × 800 | |
| Front Overhang/Rear Overhang (mm) | 1370/3450 | |
| Approach/Departure Angle (°) | 24/22 | |
| No. of Steel Spring (Front/Rear) | 9/12 | |
| Max. Speed (km/h) | 90 | |
Auhui Hualing Automobile Co., Ltd or CAMC is a China company engaged in producing 6×4 cargo trucks. In addition to this flatbed truck, our products also cover heavy tractor truck, mixer truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our 6×4 cargo trucks or cargo flatbed trucks have been exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC cargo trucks or concrete mixers are well received by customers both home and abroad.
