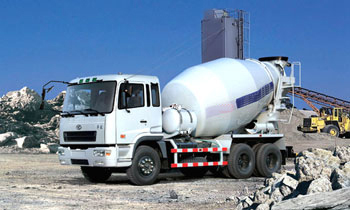

AH5323GJB Mixer Truck

Mixer Truck

Introduction and Features:
1. Mixer truck is used to mix cement, asphalt and other materials. It is widely used in construction industry both China and abroad.
2. Our mixer truck is preferred for smart appearance, high efficiency, high safety and convenient operating system.
3. We are professional construction machinery manufacturer, located in Shanghai, China.

Main parameters of SH5323GJB mixer truck:
Engine
(Mixer truck)
Model L345 20 (Dongfeng, Cummings), 345SH
Type Four-stroke, water-cooled
in-line, dry liner, direct injection
Max. Power 254kw (2200rpm)
Max. Torque 1350N.M (1300~1500rpm)
No. of Cylinder 6
Bore * Stroke 114*135 (mm)
Displacement 8.9L
Controller type Mechanical automation
Air cleaner Dry
Accessories Mp3, A/C and imported steering device
Transmission
(Mixer truck)
Model 9JS150T
Type Mechanical (synchronizer)
1st 12.42
2nd 8.29
3rd 6.11
4th 4.53
5th 3.36
6th 2.47
7th 1.82
8th 1.35
9th 1.00
Reverse 12.99
Wheels & Tires Rim 8.0-20
Tires 11.0-20
Axles
(Mixer truck)
Front Stub axle, double T-cross section
Capacity: 7500kg
Rear Single reduction
hub reduction & final drive ratio(5, 73)
Capacity: 13000kg
Brake systems
(Mixer truck)
Service Full air brake, Dual circuit
Parking Spring actuator at rear wheels
Auxiliary Exhaust brake
Fuel tank
(Mixer truck)
Mounted on offside of the frame
Capacity 250L
Material Galvanized steel
Steering
(Mixer truck)
Driving position Left hand drive only
Type Recirculation ball with integral power, oil-assisted
Model HITACHI
Suspension
(Mixer truck)
Front Tapered leaf spring, with 9 semi-elliptic shape
Rear Tapered leaf spring, with 12 semi-elliptic shape
Clutch
(Mixer truck)
Type Hydraulic control, air-assisted
Plate diameter Dry single plate with diaphragm
Outside diameter 430 mm
Dimension
(Mixer truck)
Overall dimension 9000×2495×3800 (mm)
Effective Capacity 8m3
Kerb mass 12800kg
Number of axle 3
Tread 2065/1860/1860 (mm)
Wheelbase 3600+1350 (mm)
Min. Ground clearance 255mm
Mm
No. of Seat 3
Payload
(Mixer truck)
Axle load Front: 7500KG
Rear: 2×7500KG
Payload 20000KG
GVW 32800KG
Calculated performance Max. Speed 90 (km/h)
Max. Grade ability 30 %
Min. Turning radius 7m
Mixing drum &
Driving system
(Mixer truck)
Geometric volume 13.4 m3 (Mixing drum)
Mixing volume 8 m3
Materials 16Mn, Cu (Mixing drum)
Loading rate 60%
Feeding speed >2.7 m3/min
Discharging speed >1.2 m3/min
Residue rate <1 %
Rotation speed 0-15 rpm
Inclination 13.5°(Mixing drum)
Pump Model A4VTG90
Brand Rexroth
Original Germany
Reducer Model PLM9
Brand ZF
Original Germany
