HomeProductsCAMC Lightweight Cargo Truck>CAMC Lightweight Cargo Van 6×2

Cargo truck

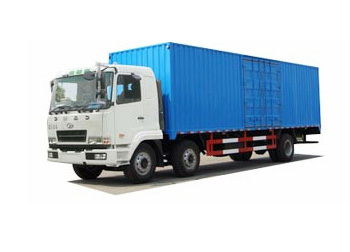

CAMC Lightweight Cargo Truck

Main Parameters:

Relevant Dimensions(mm) of CAMC Lightweight Cargo Van 6×2
Type Van 6×2
Wheel Base 1850+4800
Overall Length 11100
Overall Width 2500
Overall Height 3850
Warehouse Length 8700
Warehouse Width 2300
Warehouse Height 600,800
Front Overhang 1370+75
Rear Overhang 3080
Frame Ground Clearance 1128
Frame Height 278
Frame Width 940/842 (front/rear)
Wheelbase of CAMC Classic Van 6×2 2065/1860


Power of Cargo Van
Engine Type YC6J210-33 SC9DK240Q3B1
Pattern In-line, Water Coiling, Six-Cylinder In-line, Water Coiling, Six-Cylinder
Oil Feeding System Inner EGR Inner EGR
Rated Power/Rotate Speed (KW/r/min) 155/2500 177/2200
Max. Torque/Rotate Speed (Nm/r/min) 710/(1400-1700) 922/1400
Cylinder Diameter×Stroke (mm) 105×125 114×144
Admission Method Inter-Cooling Inter-Cooling
Output Volume (L) 6.494 8.82
Idling Speed 700~750 700±20
Way of Cooling Water-Cooling Water-Cooling
Max.Net Power/Rotate Speed (KW/r/min) 150/2500 175/2200
Max.Net Power/Rotate Speed Fuel Feeding 0.1014 0.136
Noise Db(A) <93 <93
Emission Euro-3 Euro-3

Weight (kg) of CAMC Lightweight Cargo Van 6×2 Steering System of Cargo Van Clutch System of Cargo Truck
Curb Weight 9300 Redirector ø100 Type ø395 Pusher Clutch
Chassis Curb Weight 7500 Power Steering Pump Liquid Pump Control System Hydraulic Pneumatic Control
Carrying Capacity (annoucement) 15505
Total Weight 25000
Transmission Performance Brake System of Cargo Van Other Parameters of CAMC Lightweight Cargo Van 6×2
Top Speed 105 km/h Type Double-loop Pneumatic Braking Type of Tires 11.00-20
Max Gradient 25% Type of Brake Drum Brake Fuel Tank Capacity (L) 380L
Model of Gearbox 9JS119B Parking Brake Spring Type Capacity of Batteries (Ah) 135 Ah
Gears 9 Emergency Brake Spring Type
Drive Axle Ratio 4.44
