Description

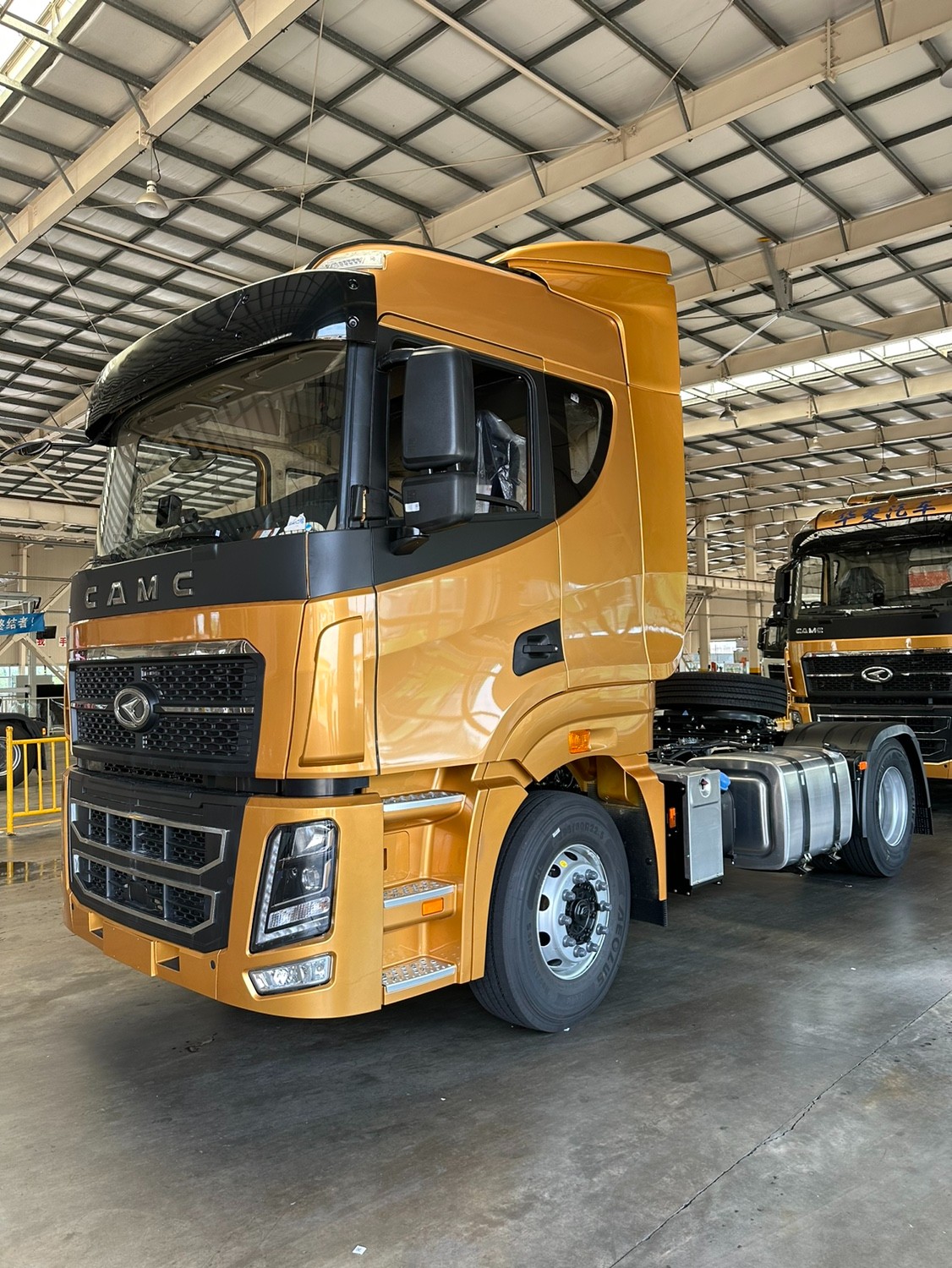

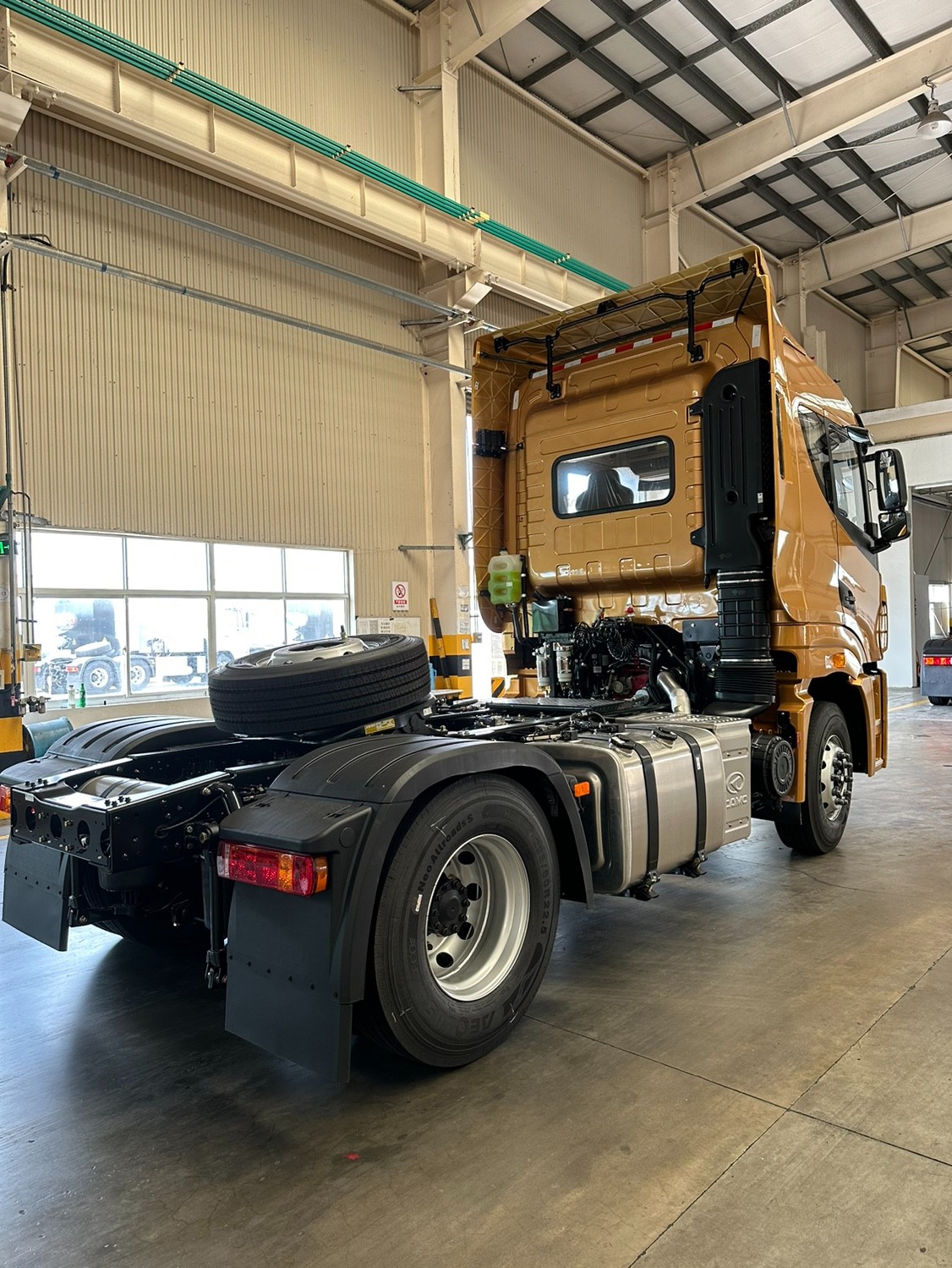

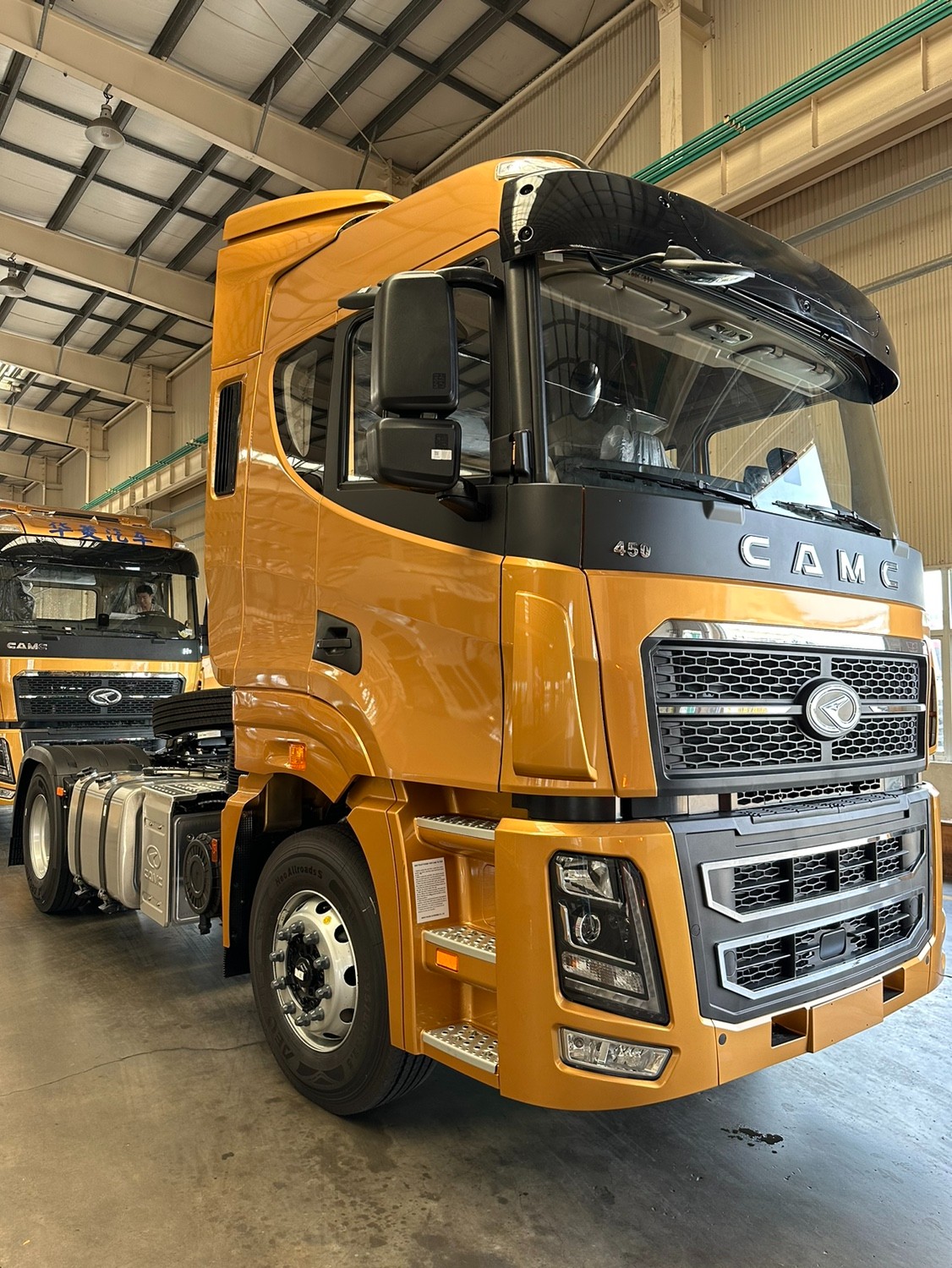

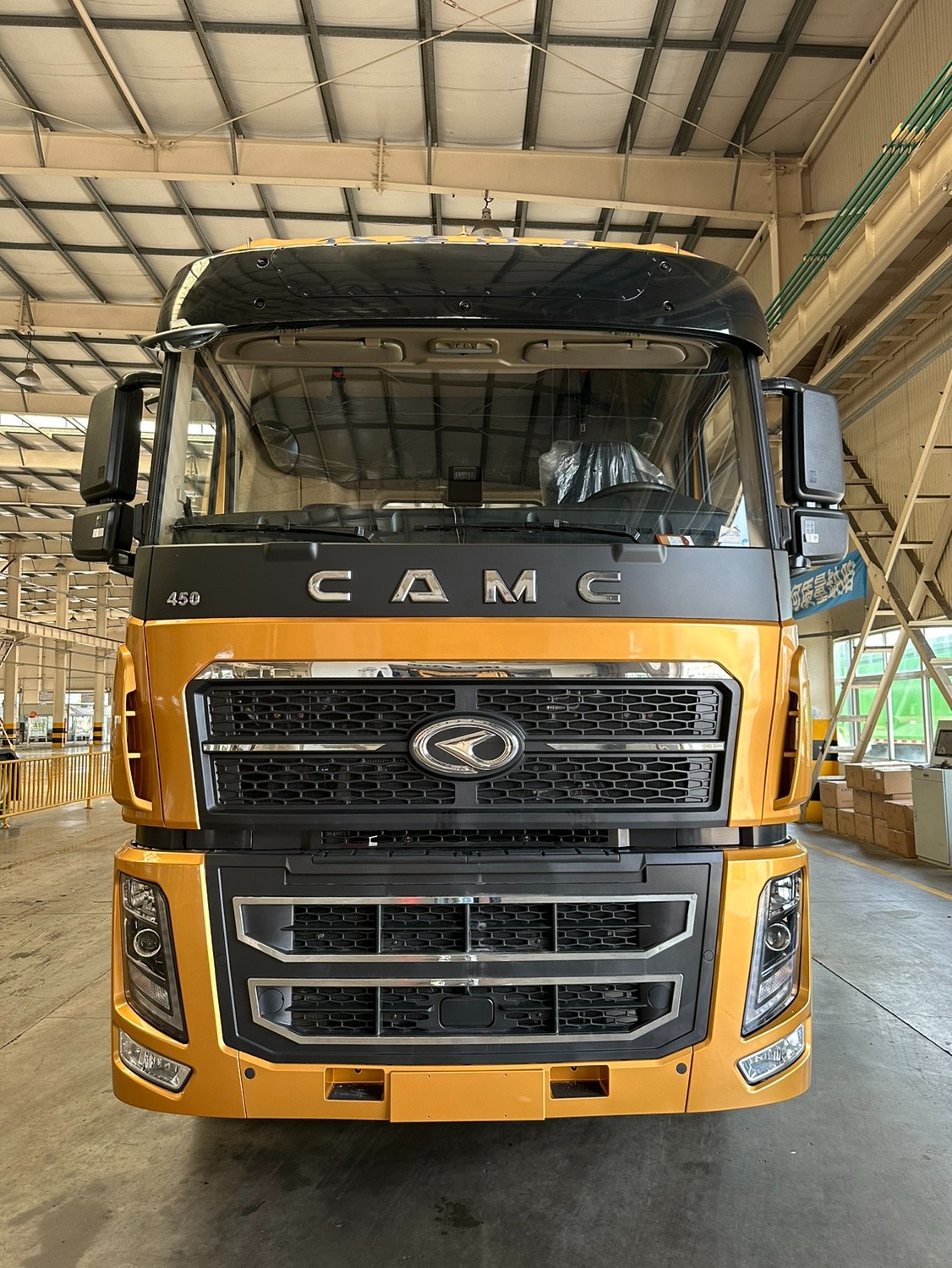

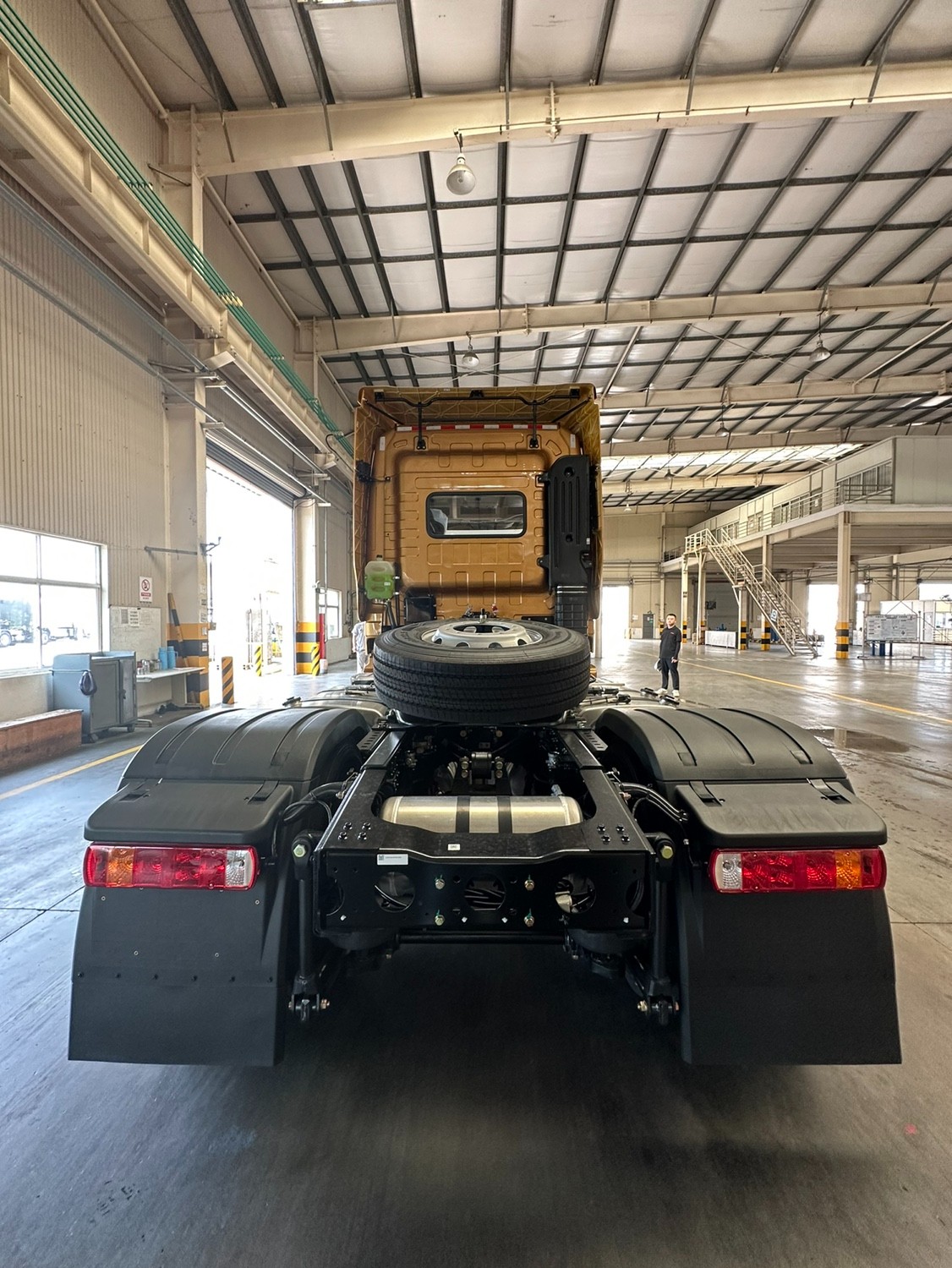

CAMC 4×2-1 tractor truck is a kind of semi-trailer truck for transporting heavy goods. It uses towing engine and an additional semi-trailer to carry or transport heavy goods like container, cars, stones, etc. This truck tractor head is usually used to transport a large number of goods in the workshop, such as transporting goods from automobile manufacturing warehouse to the assembly line. Our 4×2 tractor trucks are also applied for transporting airport baggage.
Features
1.This truck tractor head has a comfortable and spacious cab.
2.It is characterized by compact structure, elegant line, wide field of vision, large door opening angle and large cab tilting angle.
3.CAMC 4×2-1 tractor truck enjoys the advantages of light weight, high load capacity, strong power, high reliability, strong climbing ability and high speed.
4.This type of truck tractor head is easy and convenient to maintain.
Main Technical Parameters
| Product Name | Tractor Truck | |
| Product Model | HN4180P34C4M3 | |
| Place of Origin | Maanshan, Anhui, China | |
| Kerb Mass | 7.5 ton | |
| Rated Payload | 60 ton | |
| Drive Type | Left-Hand (Optional RHD) | |
| Drive Model | 4 × 2 | |
| Vehicle Body Color | Yellow (Optional) | |
| Overall Dimension (L × W × H) mm | 6170 × 2500 × 3100 | |
| Engine | Brand | WEICHAI |
| Model | WP12.420E32 | |
| Max. Power (kw/r/min) | 309/2200 | |
| Max. Torque (N. m/r/min) | 1750/1600 | |
| No. of Cylinder | 6 | |
| Bore × Stroke (mm) | 126 × 155 | |
| Displacement | 12000 ml | |
| Control Type | Mechanical | |
| Air Cleaner | Dry Paper Element | |
| Emission Standard | Euro II | |
| Clutch | Type | Hydraulic Control with Air Assisted |
| Plate Diameter | Dry Single Plate with Diaphragm Outside Diameter: 430 mm | |
| Transmission | Brand | FAST GEAR |
| Model | 16JS180T (16-speed & 2-reverse) | |
| Type | Mechanical | |
| The Number of Axles | 2 | |
| Rear Axle (Drive Axle)-Load | 16000 kg | |
| Front Axle-Load | 7500 kg | |
| Cabin Type | Classic Flat-Roof (Optional EF, CH, EH) | |
| Cabin | With A/C, Radio, MP3, Bunk | |
| Brake System | Service | Full Air Brake Dual Circuit |
| Parking | Spring Actuator at Rear Wheels | |
| Auxiliary | Exhaust Break | |
| Steering System | Recirculation Ball with Integral Power Assisted by Oil | |
| Wheelbase (mm) | 3400 | |
| Wheel/Tire | Type | Bias/Radial Tube/Radial Tubeless |
| Model (Optional) | 11.00-20/11.00R20/11R22.5 12.00-20/12.00R20/12R22.5 | |
| Tire Number | 6+1 | |
| Fuel Tank | Volume (L) | 350 |
| The Working Platform | With | |
| Diversion Cover | Optional | |
| Front Overhang/Rear Overhang (mm) | 1370/1020 | |
| Approach/Departure Angle (°) | 24/23 | |
| No. of Steel Spring (Front/Rear) | 9/9+6 | |
| Max. Speed (km/h) | 90 | |
Established in 2003, Auhui Hualing Automobile Co., Ltd is a professional manufacturer and supplier of tractor trucks in China. In addition to truck tractor head, our products also cover mixer truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our tractor trucks are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC truck tractor heads are well received by customers both home and abroad.
