Description

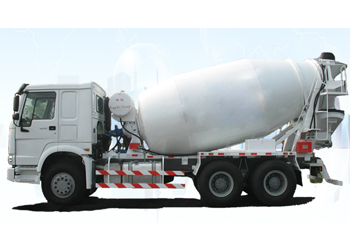

We are able to supply various models of truck-mounted concrete mixers, such as 6 m3, 8 m3, 9 m3, 10 m3, 12 m3, 14 m3 and 16 m3. They can match with any special domestic and foreign chassis according to customers’ demands. The driving system of the mixing drum adopts the closed-type hydraulic system pump. The motor and reducer of this concrete mixer truck are imported from US and Germany with original packaging. Our 12 m3 truck-mounted concrete mixers adopt imported hydraulic accessories, such as oil tank, radiator, filter and rubber hose connector. All these ensures the hydraulic system has a long service life.
Applications of 12 m3 Concrete Mixer Truck
This truck-mounted concrete mixer is mainly applied for mixing and transporting concrete mixture between long distances. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.
Main Parameters of 12 m3 Concrete Mixer Truck
| Model | HDT5256GJB (12336) | HDT5256GJB1 (12336) | |
| HDT5256GJB (12375) | HDT5256GJB1 (12375) | ||
| Whole Vehicle Performance and Parameters | Chassis | HOWO | STEYR KING |
| Curb Weight (kg) | 15000 | 15000 | |
| Total Vehicle Weight (kg) | 25000 | 25000 | |
| Outline Dimension (L × B × H) (mm) | 9880 × 2496 × 3920 | 9800 × 2496 × 3880 | |
| Wheelbase (mm) | 4025+1350 | 4000+1350 | |
| Front Overhang (mm) | 1500 | 1560 | |
| Rear Overhang (mm) | 2980 | 2890 | |
| Min. Clearance Above Ground (mm) | 245 | 296 | |
| Max. Traveling Speed (km/h) | 86 | 90 | |
| Min. Turning Diameter (m) | 20 | 19.3 | |
| Oil Consumption per 100 km (Under Limited Conditions) | ≤ 25 | ≤ 25 | |
| Vehicle Configuration | Clutch | Dry Single Disc Clutch (φ430) | Dry Single Disc Clutch (φ430) |
| Gear Box | ZF5S-150GB | HW18709 | |
| Driving Type | 6 × 4 | 6 × 4 | |
| Steering Mechanism | ZF8098 | ZF8098 | |
| Service Brake | Dual-Circuit Air Brake | Dual-Circuit Air Brake | |
| Parking Braking | Spring-Powered Air-Cut-Off Brake | Spring-Powered Air-Cut-Off Brake | |
| Auxiliary Brake | Engine Exhaust Brake | Engine Exhaust Brake | |
| Tyre | 12.00 (R)-20 | 12.00 (R)-20 | |
| Engine Parameters | Model | P11C-UH; WD615.95 | WD615.95, WD615.95E, WD615.96, WD615.96E |
| Type | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine Or EGR | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine Or EGR | |
| Emission Standard | China III, Euro III | China III, Euro III | |
| Power (kw) | 336 HP, 375 HP (2200 r/min) | 336 HP, 375 HP (2200 r/min) | |
| Max. Torque | 1420, 1350 N. m | 1420, 1350 N. m | |
| Mixing Drum Parameters | Geometric Volume of Mixing Drum (m3) | 18.5 | 18.5 |
| Max. Mixing Cubage (m3) | 12-13 | 12-13 | |
| Feeding Speed (m3) | ≥ 3.5 | ≥ 3.5 | |
| Discharging Speed (≥ m3) | ≥ 2.5 | ≥ 2.5 | |
| Leftover Rate | Nearly Zero | Nearly Zero | |
| Max. Rotating Speed (r/min) | 14-16 | 14-16 | |
| Mixing Drum Obliquity (°) | 12 | 12 | |
| Max. Mixing Drum Diameter (mm) | φ2412 | φ2412 | |
| Driving System | Speed Reducer | Italian BONFILI-580 | Italian BONFILI-580 |
| Hydraulic Pump | US EATON6423-279 | US EATON6423-279 | |
| Hydraulic Motor | US EATON6433-042 | US EATON6433-042 | |
| Radiator | German AKG with Vacuum Meter | German AKG with Vacuum Meter | |
| Water Supply System | Water Tank Capacity (L) | 260 | 260 |
| Water Supply Mode | Water Pump; Pneumatic Pump | Water Pump; Pneumatic Pump | |
Auhui Hualing Automobile Co., Ltd is a specialized company engaged in providing 12 m3 truck-mounted concrete mixers in China. In addition to this concrete mixer truck, our products also include heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. Our company has a professional technical team, some of who have decades of working experience and predominant R & D ability. 12 m3 truck-mounted concrete mixers are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. Our concrete mixer trucks earn its good reputation for high quality and competitive price advantages.
