Introduction of Dump truck:

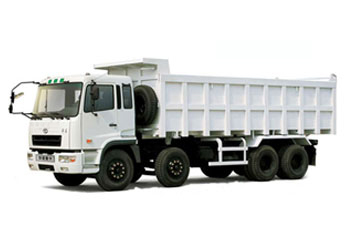

1. SH3320P39C3M dump truck is a kind of special vehicle used in construction industry both China and abroad.
2. Dump truck is used to transport construction material such as sand, gravel and cement. The dump truck is popular with applied function.
3. SH3320P39C3M dump truck has beautiful appearance with larger capacity than other trucks. This dump truck is designed with maneuverable operating system.
4. Our dump truck has one front axle and two rear axles with dual wheels on each side; this special structure ensures high performance of the dump truck.
5. Dump body of SH3320P39C3M dump truck is more flexible to operate. It is manufactured with reasonable design to extend using life.
Specifications of Dump truck:
|
Model
|
SH3320P39C3M
|
|
Overall Dimension
|
8160*2495*3240 mm
|
|
Kerb mass
|
12900kg
|
|
Tread
|
2065/1860/1860 mm
|
|
Min. Ground clearance
|
255mm
|
|
Nominal payload
|
Front Axle load
|
7500 kg
|
|
Rear Axle load
|
2*13000 kg
|
|
Permission payload
|
12700kg
|
|
Engine
|
Model C13-380 (Caterpillar) 380SH
|
|
Deck dimension
|
5400*2300*1200mm
|
|
No. of Axle
|
3
|
|
Wheelbase
|
(3600+1350) mm
|
|
No. of Seat
|
3
|
