Introduction

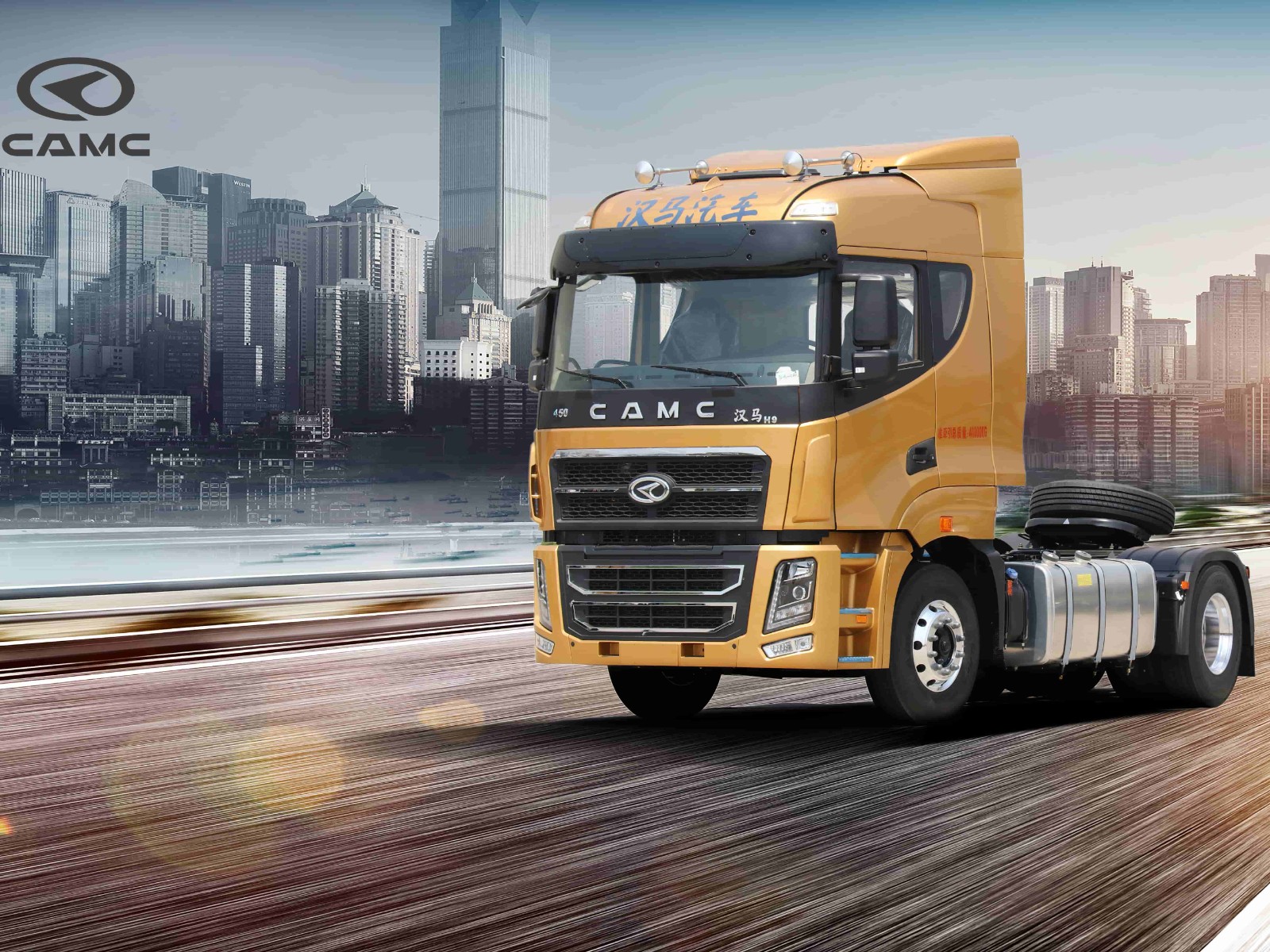

4×2-2 tractor head is one of our mature products. It possesses the advantages of reliable structure, strong load capability, superior power and stable performance. Its cab is beautiful, elegant, safe and comfortable. This tractor truck is quite suitable for highway long-distance transportation and high-speed highway transportation. In order to meet customers’ different transport demands, CAMC can provide different tractor heads, such as lightweight tractor, heavy truck tractor and 6×4 trailer head truck. Clients can choose suitable tractor trucks according to specific transportation requirements.
Advantages
1. The appearance of 4×2-2 tractor head is luxurious and great, which is a combination of fortitude and streamline, sturdiness and elegance.
2. The interior configurations of this tractor truck are arranged perfectly. The elegant and delighted driving environment is built on the international advanced comfortable and human-oriented design.
3. Our company has a professional technical team, some of who have decades of working experience for tractor head.
Main Parameters
Product Name | Tractor Truck | |
Product Model | HN4180P34C4M3 | |
Place of Origin | Maanshan, Anhui, China | |
Kerb mass | 7.5 ton | |
Rated Payload | 40 ton | |
Drive Type | Left-Hand (Optional RHD) | |
Drive Model | 4 × 2 | |
Vehicle Body Color | Yellow (Optional) | |
Overall Dimension (L × W × H) mm | 6170 × 2500 × 3100 | |
Engine | Brand | DONGFENG CUMMINS |
Model | L340 30 | |
Max. Power (kw/r/min) | 250/2200 | |
Max. Torque (N. m/r/min) | 1350/1400 | |
No. of Cylinder | 6 | |
Bore × Stroke (mm) | 114 × 145 | |
Displacement | 8900 ml | |
Control Type | Mechanical | |
Air Cleaner | Dry Paper Element | |
Emission Standard | Euro II | |
Clutch | Type | Hydraulic Control with Air Assisted |
Plate Diameter | Dry Single Plate with Diaphragm Outside Diameter: 430 mm | |
Transmission | Brand | FAST GEAR |
Model | RT-11509C (9-speed & 1-reverse) | |
Type | Mechanical | |
The Number of Axles | 2 | |
Rear Axle (Drive Axle)-Load | 13000 kg | |
Front Axle-Load | 7500 kg | |
Cabin Type | Classic Flat-Roof (Optional EF, CH, EH) | |
Cabin | With A/C, Radio, MP3, Bunk | |
Brake System | Service | Full Air Brake Dual Circuit |
Parking | Spring Actuator at Rear Wheels | |
Auxiliary | Exhaust Break | |
Steering System | Recirculation Ball with Integral Power Assisted by Oil | |
Wheelbase (mm) | 3400 | |
Wheel/Tire | Type | Bias/Radial Tube/Radial Tubeless |
Model (Optional) | 11.00-20/11.00R20/11R22.5 12.00-20/12.00R20/12R22.5 | |
Tire Number | 6+1 | |
Fuel Tank | Volume (L) | 350 |
The Working Platform | With | |
Diversion Cover | Optional | |
Front Overhang/Rear Overhang (mm) | 1370/1020 | |
Approach/Departure Angle (°) | 24/23 | |
No. of Steel Spring (Front/Rear) | 9/9+6 | |
Max. Speed (km/h) | 90 |
Auhui Hualing Automobile Co., Ltd is a leading manufacturer and supplier of tractor heads in China. In addition to this tractor truck, we also supply concrete mixing truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and heavy axle for sale. With decades of production and sale experience, our tractor heads are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC tractor trucks or trailer head trucks are well received by customers both home and abroad.
