HomeProductsTractor truck CAMC Lightweight Tractor 6×2

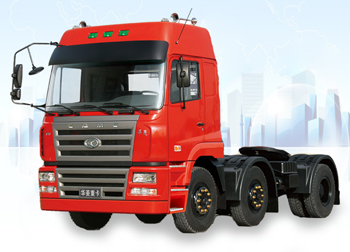

SH4250G438CLM Tractor truck

CAMC Lightweight Tractor

Main Parameters:

Relevant Dimensionsmm
Type CAMC Lightweight Tractor 6×2
Wheel Base 1850+2600
Overall Length 6870
Overall Width 2495
Overall Height 3600
Warehouse Length
Warehouse Width
Warehouse Height
Front Overhang 1370+75
Rear Overhang 1020
Frame Ground Clearance 1360
Frame Height 278
Frame Width 940/842(front/rear)
Wheelbase 2065/1860


Power of CAMC Lightweight Tractor 6×2
Engine Type WP10.310E32 WP10.290E32
Pattern In-line, Water Coiling, Six-cylinder In-line, Water Coiling, Six-cylinder
Oil Feeding System Inner EGR Inner EGR
Rated Power/Rotate Speed (KW/r/min) 228/2200 213/2200
Max. Torque/Rotate Speed (Nm/r/min) 1250/1200-1600 1145/1200-1600
Cylinder Diameter×Stroke (mm) 126×130 126×130
Admission Method Inter-cooling Inter-cooling
Output Volume (L) 9.726 9.726
Idling Speed 600±50 600±50
Way of Cooling Water-cooling Water-cooling
Max.Net Power/Rotate Speed (KW/r/min) 224/2200 209/2200
Max.Net Power/Rotate Speed Fuel Feeding 0.178 0.173
Noise Db(A) <93 <93
Emission Euro-3 Euro-3

Weight (kg) Steering System of CAMC Lightweight  Tractor 6×2 Clutch System
Curb Weight 7500 Redirector ø100 Type ø430 Pusher Clutch
Overall Weight 44800 Steering Kinetic Pump Liquid Pump Control System Hydraulic Pneumatic Control
Overall Mass of Quasi-tractor 37105
Transmission Performance Brake System of CAMC Lightweight  Tractor 6×2 Other Parameters
Top Speed 120 km/h Type Double-loop Pneumatic Braking Type of Tires 11.00R22.5
Max Gradient 25% Type of Brake Drum Brake Fuel Tank Capacity (L) 380L
Model of Gearbox RTO-11509F Parking Brake Spring Type Capacity of Batteries (Ah) 135 Ah
Gears 9 Emergency Brake Spring Type
Drive Axle Speed Ratio 4.44
