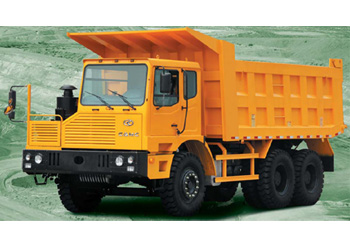

| Model | HN3601 Mining Gas Side Dump Truck 6×4 | ||
| Summary | Based on existing mining Dump Truck, our company applies the world advanced fuel engine into mining Dump Truck and forms the Hualing mining gas Dump Truck, which provides higher economic benefits and environmental protections for users. | ||
| Engine model | Hangfa WT615.95 | Weichai P12NG380E40 | |
| Rated output/speed(kw/ r/min) | 250/2200 | 280/2200 | |
| Max torque/speed(N.m/ r/min) | 1350/1200-1600 | 1500/1400-1600 | |
| Gearbox | Fast RTD11509C or 9JS180 | Fast 9JS180 | |
| Hydraulic lifting structure | Complete set from Hayward (including pump, cylinder, valve etc.) | ||
| Overall dimension (L × W × H)(mm) | 8670×3080×3750 | ||
| Inside dimension of container (L × W × H) | 5500×2950×1570 | ||
| Effective volume of container(m3) | 25 | ||
| Container form | Standard configuration: flat bottom; option: tail-raising | ||
| Drive form of CAMC Heavy Truck Mining Dump Truck Series | 6×4 | ||
| Axle base(mm) | 3775+1500 | ||
| Minimum ground clearance(mm) | 360 | ||
| Approach angle/departure angle(o) | 31/52 | ||
| Max total mass(kg) | 63000 | ||
| Complete truck curb mass(kg) | 23000 | ||
| Loading mass(kg) | 40000 | ||
| Max speed(km/h) | 50 | ||
| Tire | 13.00-25(14.00-24 for option) | ||
| Fuel | —— | ||
| Max grade ability (%) | 40 | ||
| Lifting time(s) | ≤25 | ||
| Max angle of inclination(o) | 50 | ||
| Paint color | Yellow and green (two colors for option) | ||
