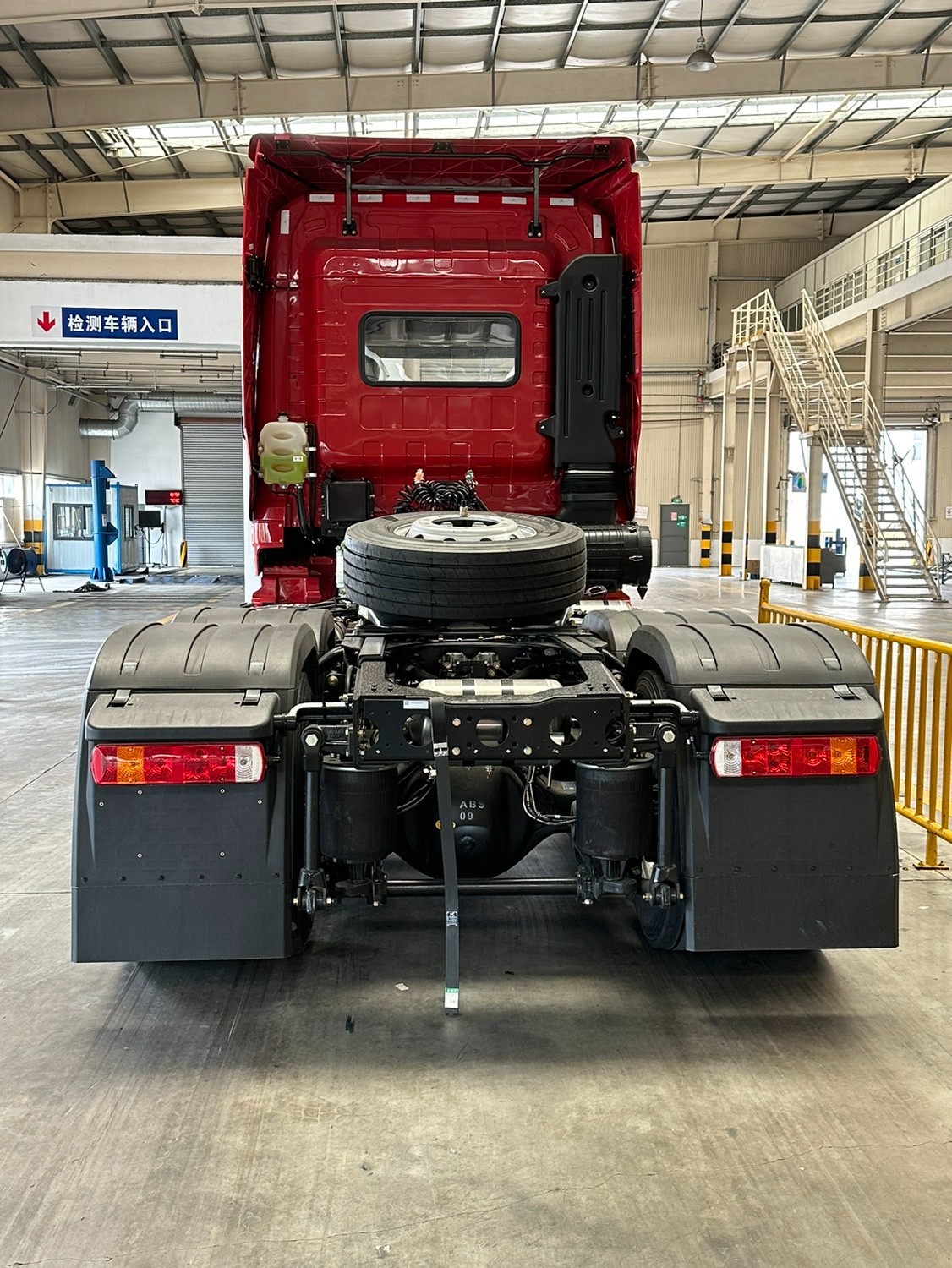

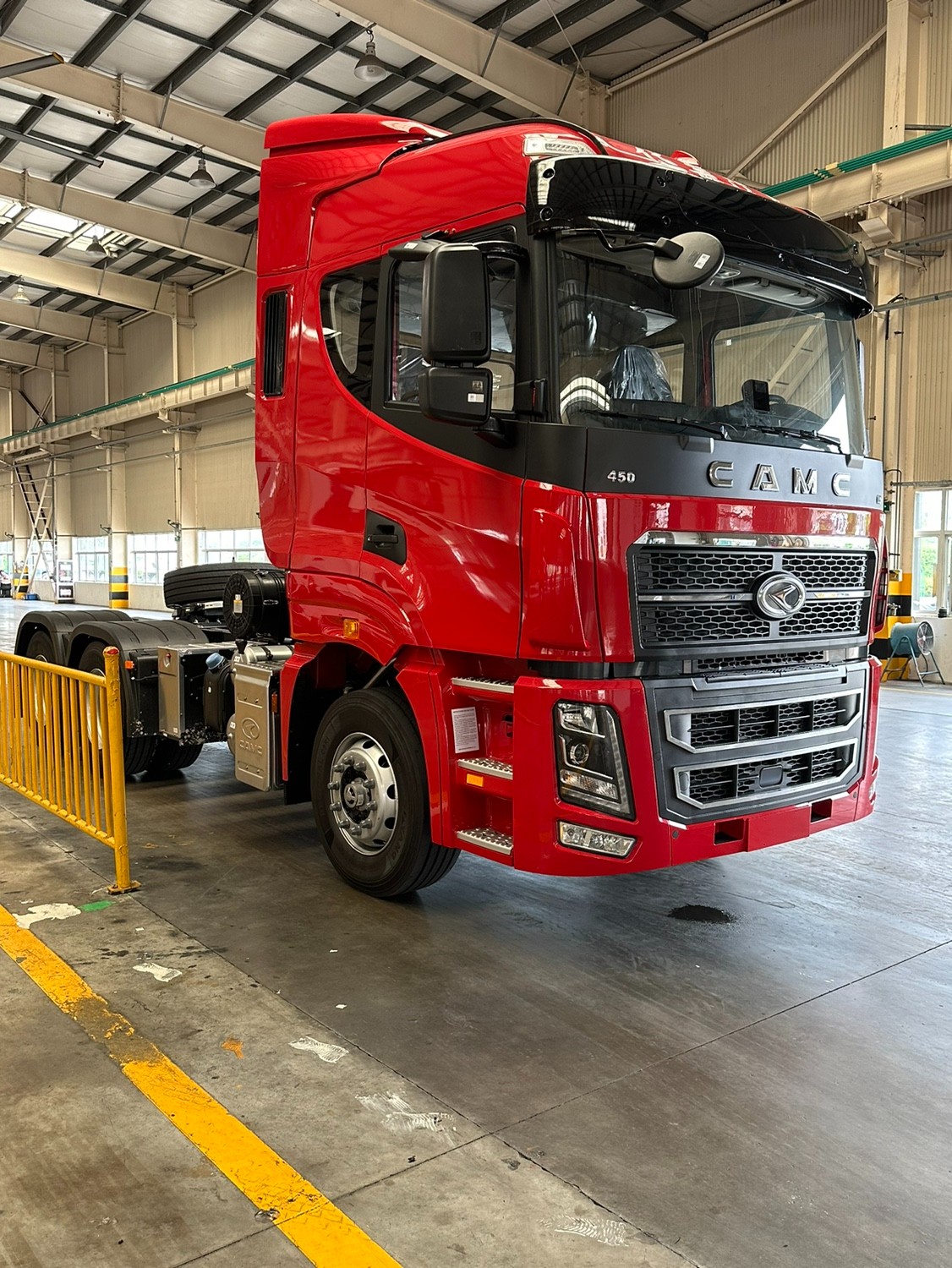

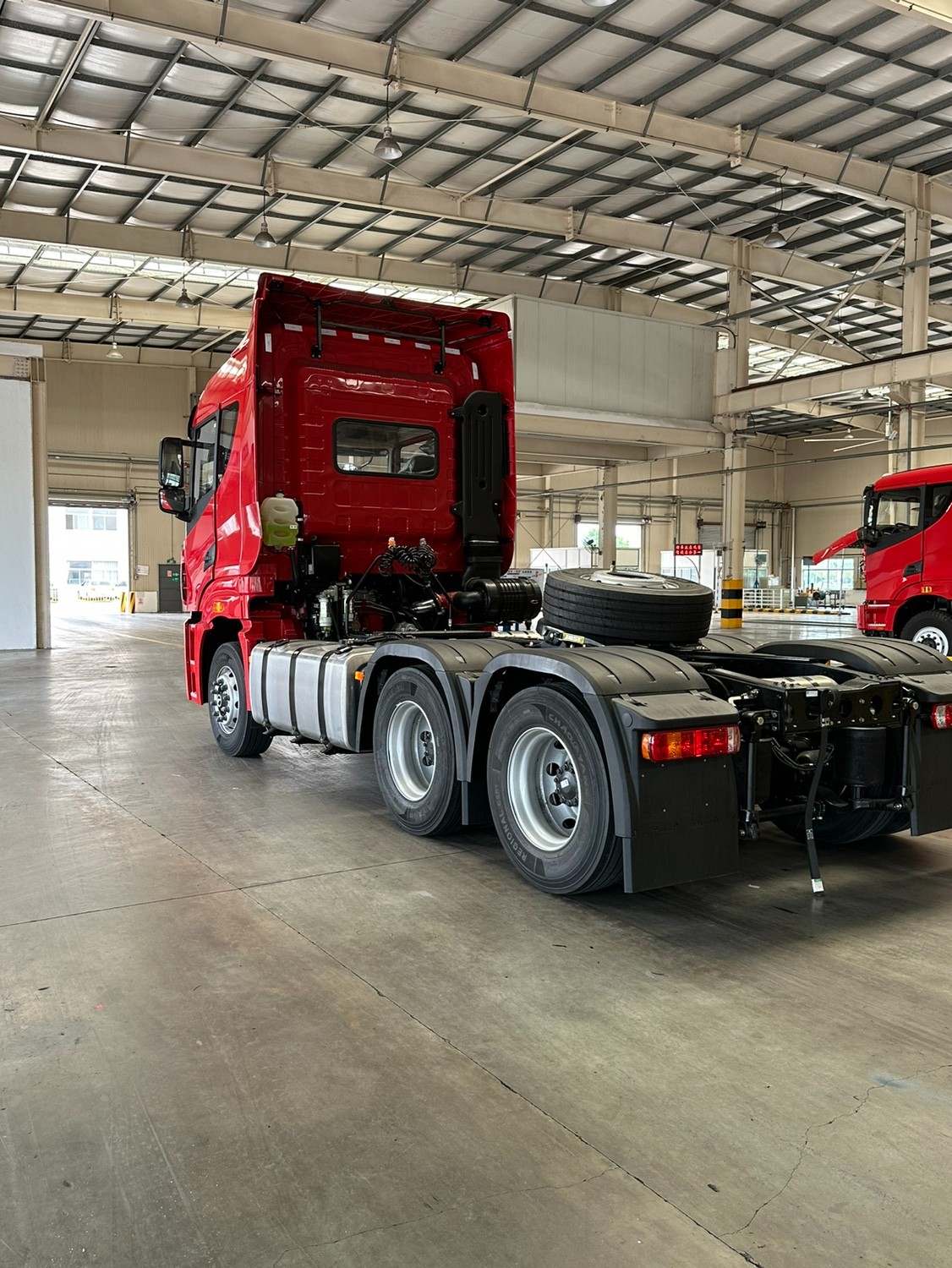

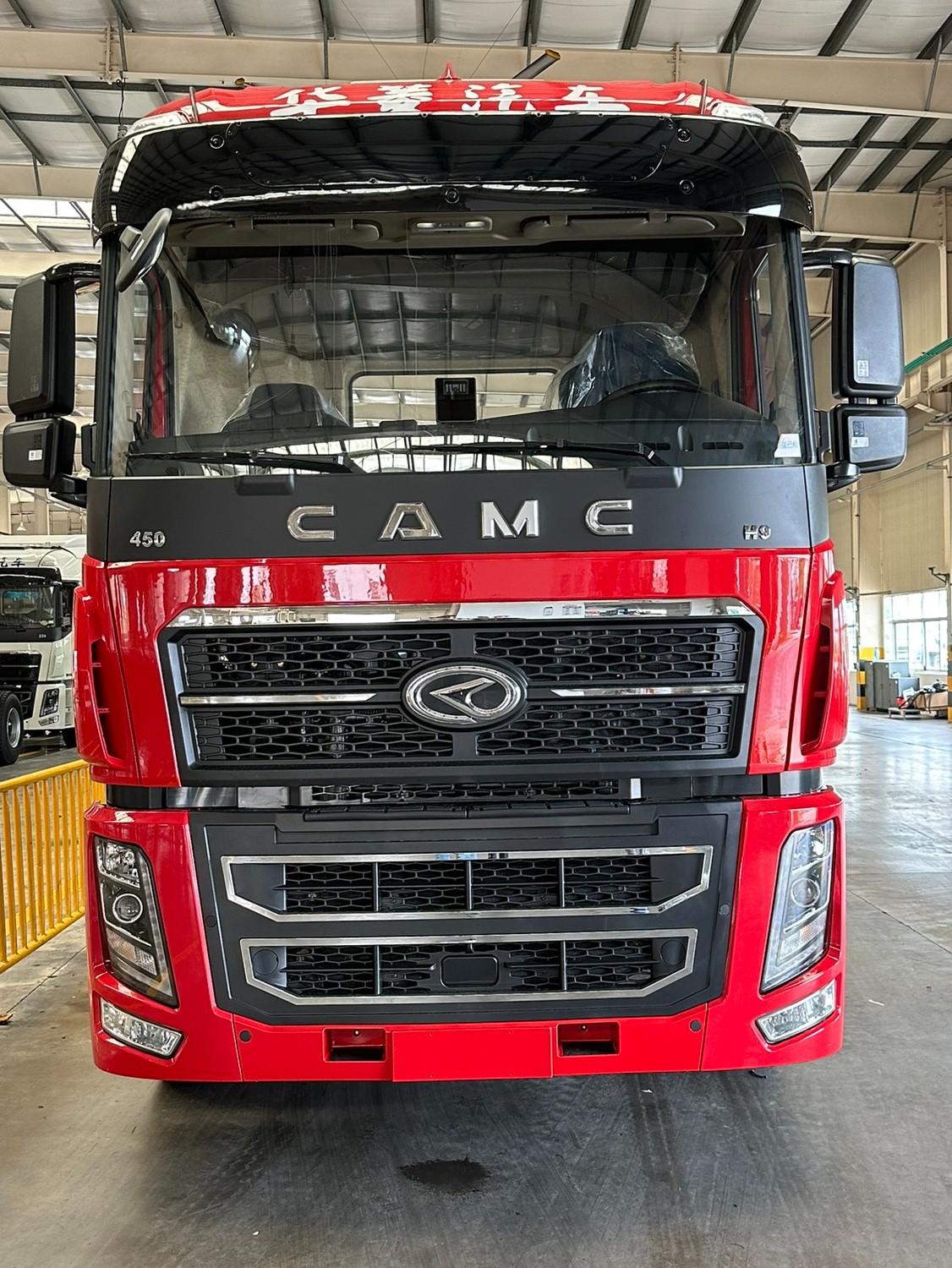

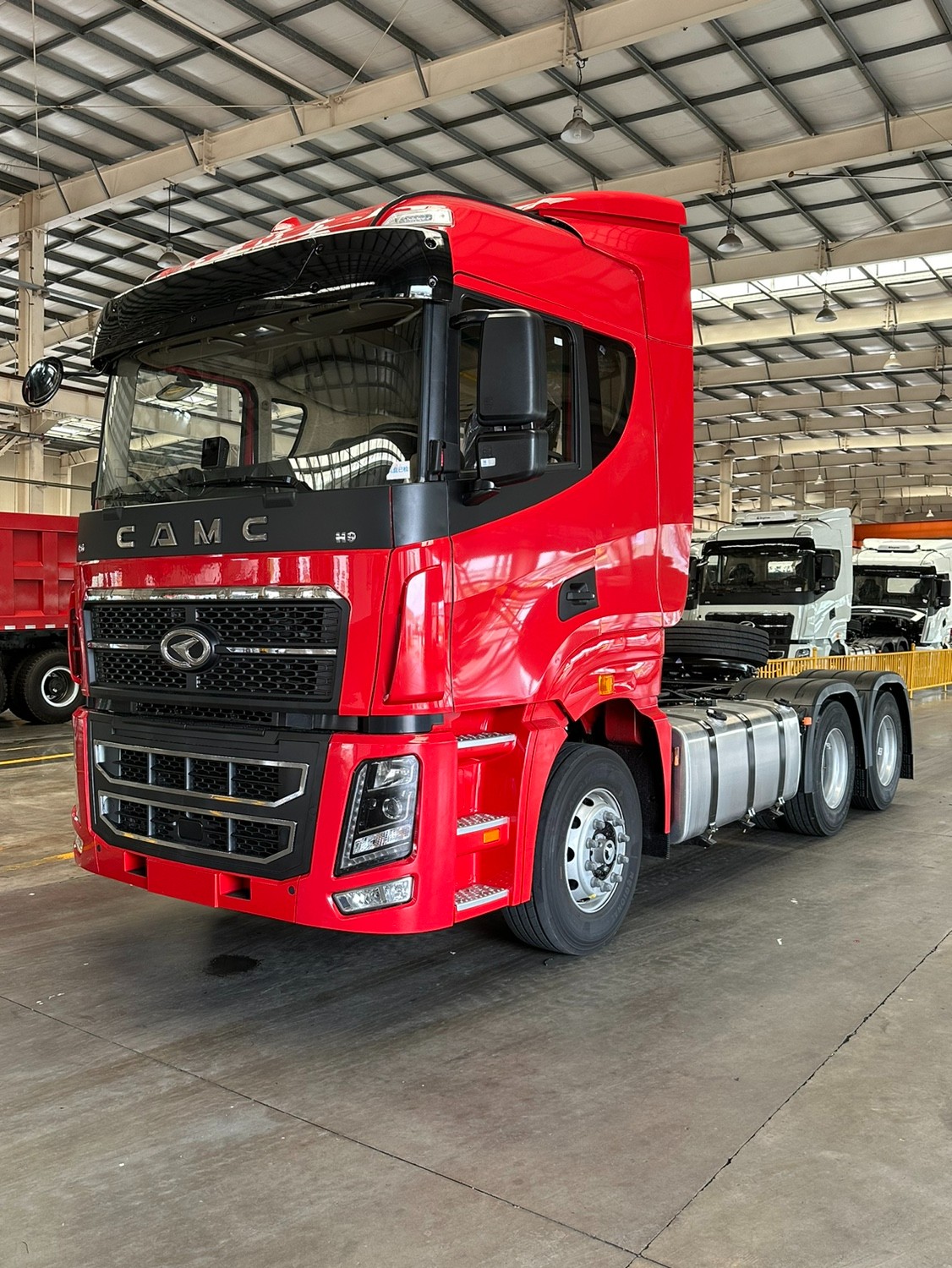

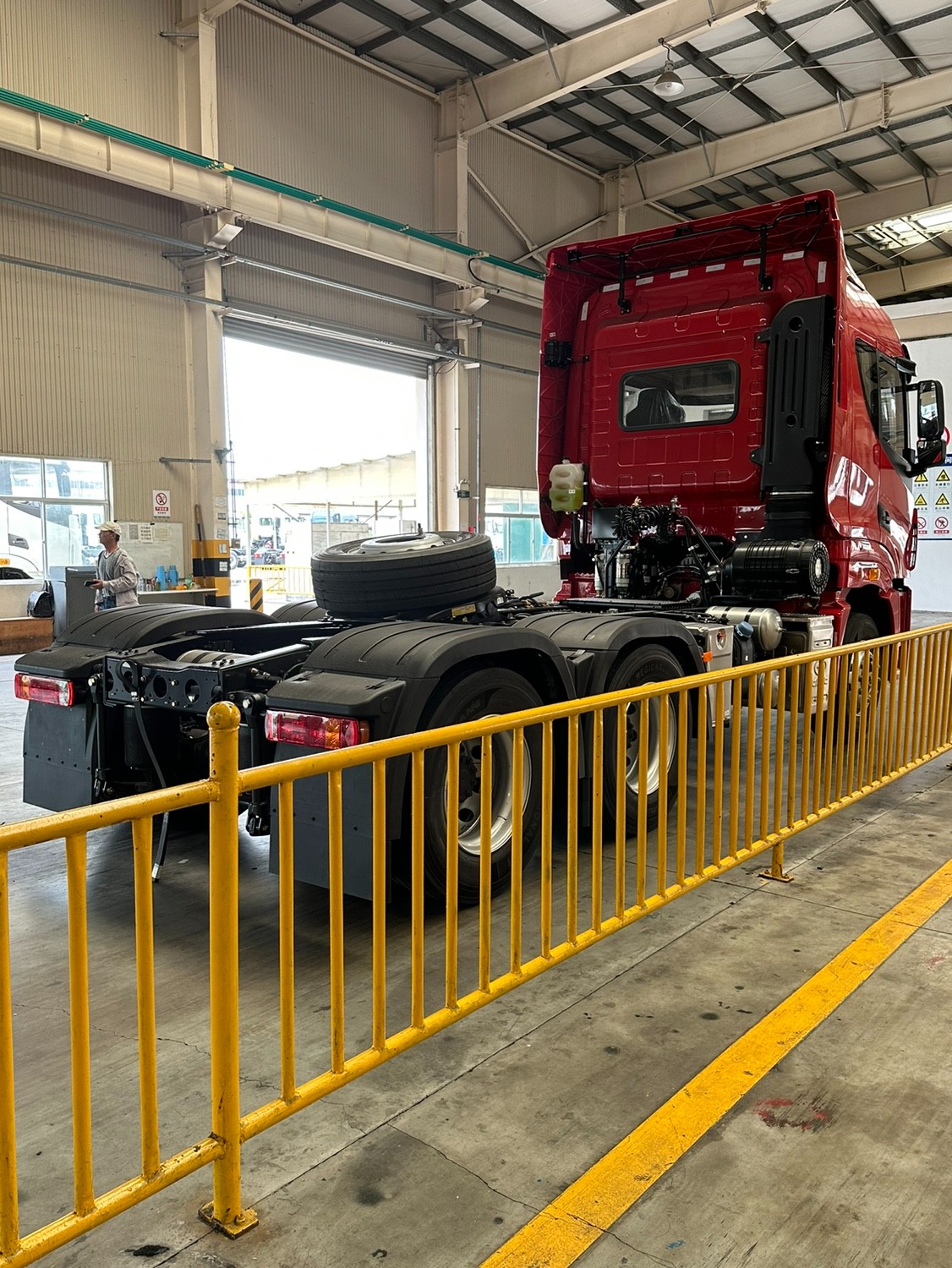

SH4250G438CLM Tractor truck

Tractor truck

Introduction
CAMC 6×4-1 tractor head is one of our hot selling products. It adopts advanced key assemblies and it is reasonably connected by advanced technology. This truck tractor enjoys outstanding performances on power, economical efficiency, reliability and environmental protection. It owns the advantages of reliable structure, strong load capability, superior power and stable performance. This tractor head is well suited for highway long-distance transportation and high-speed highway transportation. In addition to 6×4 truck tractor, our company also supplies 4×2 model. Clients can choose the suitable trailer head truck according to specific transportation requirements.

Features
1.Its cab is beautiful, elegant, safe and comfortable.
2.6×4-1 tractor head features compact structure, elegant line, wide vision, large door opening angle and large cab tilting angle.
3.This truck tractor possesses the advantages of light weight, high load capacity, strong power, strong climbing ability and high speed.
4.This tractor head is easy and convenient to maintain.

Technical Parameters of 6×4 Truck Tractor

Product Name Tractor Truck
Product Model HN4250G37CLM3
Place of Origin Maanshan, Anhui, China
Kerb mass 8.8 ton
Rated Payload 100 ton
Drive Type Left-Hand (Optional RHD)
Drive Model 6 × 4
Vehicle Body Color Yellow (Optional)
Overall Dimension (L × W × H) mm 6750 × 2495 × 3300
Engine Brand DONGFENG CUMMINS
Model L375 30
Max. Power (kw/r/min) 276/2200
Max. Torque (N. m/r/min) 1480/1400
No. of Cylinder 6
Bore × Stroke (mm) 114 × 145
Displacement 8900 ml
Control Type Mechanical
Air Cleaner Dry Paper Element
Emission Standard Euro II
Clutch Type Hydraulic Control with Air Assisted
Plate Diameter Dry Single Plate with Diaphragm Outside Diameter: 430 mm
Transmission Brand FAST GEAR
Model 12JS160T (12-speed & 2-reverse)
Type Mechanical
The Number of Axles 3
Rear Axle (Drive Axle)-Load 2 × 16000 kg
Front Axle-Load 7500 kg
Cabin Type Classic Flat-Roof (Optional EF, CH, EH)
Cabin With A/C, Radio, MP3, Bunk
Brake System Service Full Air Brake Dual Circuit
Parking Spring Actuator at Rear Wheels
Auxiliary Exhaust Break
Steering System Recirculation Ball with Integral Power Assisted by Oil
Wheelbase (mm) 3,200+1350
Wheel/Tire Type Bias/Radial Tube/Radial Tubeless
Model (Optional) 11.00-20/11.00R20/11R22.5 12.00-20/12.00R20/12R22.5
Tire Number 10+1
Fuel Tank Volume (L) 380
The Working Platform With
Diversion Cover Optional
Front Overhang/Rear Overhang (mm) 1370/1020
Approach/Departure Angle (°) 24/23
No. of Steel Spring (Front/Rear) 9/9
Max. Speed (km/h) 90

Auhui Hualing Automobile Co., Ltd (CAMC) is a leading supplier and exporter of tractor heads in China. In addition to this truck tractor, we also supply mixer truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our 6×4 tractor heads are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC truck tractors have got good reputation both home and abroad.
