HomeProductsTractor truckCAMC Lightweight Tractor 6×4

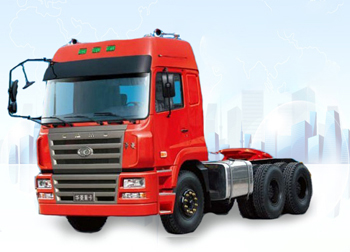

SH4320P34C2M Tractor truck

CAMC Lightweight Tractor

Main Parameters:

Relevant Dimensionsmm
Type Tractor 6×4
Wheel Base 3200+1350
Overall Length 6730
Overall Width 2495
Overall Height 3560
Warehouse Length
Warehouse Width
Warehouse Height
Front Overhang 1370+75
Rear Overhang 840
Frame Ground Clearance 1360
Frame Height 278
Frame Width 940/842(front/rear)
Wheelbase 2065/1860

Power of CAMC Lightweight Tractor 6×4
Engine Type WP10.310E32 WP10.340E32
Pattern In-line, Water Coiling, Six-cylinder In-line, Water Coiling, Six-cylinder
Oil Feeding System Inner EGR Inner EGR
Rated Power/Rotate Speed (KW/r/min) 228/2200 250/2200
Max. Torque/Rotate Speed (Nm/r/min) 1250/1200-1600 1350/1200-1600
Cylinder Diameter×Stroke 126×130 126×130
Admission Method Inter-cooling Inter-cooling
Output Volume (L) 9.726 9.726
Idling Speed 600±50 600±50
Way of Cooling Water-cooling Water-cooling
Max.Net Power/Rotate Speed (KW/r/min) 224/2200 246/2200
Max.Net Power/Rotate Speed Fuel Feeding 0.178 0.204
Noise Db(A) <93 <93
Emission Euro-3 Euro-3

Weight (kg) Steering System of CAMC Lightweight Tractor 6×4 Clutch System
Curb Weight 8700 Redirector ø100 Type ø430 Pusher Clutch
Overall Weight 48895 Steering Kinetic Pump Liquid Pump Control System Hydraulic Pneumatic Control
Overall Mass of Quasi-tractor 40000
Transmission Performance Brake System of CAMC Lightweight Tractor 6×4 Other Parameters
Top Speed 120 km/h Type Double-loop Pneumatic Braking Type of Tires 11.00R22.5
Max Gradient 25% Type of Brake Drum Brake Fuel Tank Capacity (L) 380L
Model of Gearbox RTO-11509F Parking Brake Spring Type Capacity of Batteries (Ah) 135 Ah
Gears 9 Emergency Brake Spring Type
Drive Axle Speed Ratio 4.44
