HomeProductsCAMC Lightweight Cargo Truck CAMC Lightweight Cargo Truck 8×4

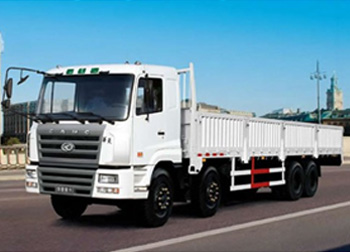

SH1320P30E2M Cargo truck
CAMC Lightweight Cargo Truck

Main Parameters

Relevant Dimensions(mm)
Type: CAMC Lightweight Van 8×4
Wheel Base 1850+4605+1350
Overall Length 11980
Overall Width 2500
Overall Height 3850
Warehouse Length 9600
Warehouse Width 2300
Warehouse Height 600,800
Front Overhang 1370+75
Rear Overhang 2805
Frame Ground Clearance 1128
Frame Height 278
Frame Width 940/842(front/rear)
Wheelbase 2065/1860


Power of Lightweight Cargo Truck 8×4
Engine Type SC9DK270Q3B1 WP10.270E32
Pattern In-line, Water Coiling, Six-Cylinder In-line, Water Coiling, Six-Cylinder
Oil Feeding System Inner EGR Inner EGR
Rated Power/Rotate Speed (KW/r/min) 199/2200 199/2200
Max. Torque/Rotate Speed (Nm/r/min) 1125/1400 1100/1200-1600
Cylinder Diameter×Stroke (mm) 114×144 126×130
Admission Method Inter-Cooling Inter-Cooling
Output Volume (L) 8.82 9.726
Idling Speed 700±20 600±50
Way of Cooling Water-Cooling Water-Cooling
Max.Net Power/Rotate Speed(KW/r/min) 195/2200 195/2200
Max.Net Power/Rotate Speed Fuel Feeding 0.166 0.202
Noise Db(A) <93 <93
Emission Euro-3 Euro-3

Weight (kg) of CAMC Van 8×4

Steering System

Clutch System

Curb Weight

12100

Redirector

ø100

Type

ø430 Pusher Clutch

Chassis Curb Weight

10100

Power Steering Pump

Liquid Pump

Control System

Hydraulic Pneumatic Control

Carrying Capacity (announcement)

18705

Total Weight

31000

Transmission Performance

Brake System of CAMC Van 8×4

Other Parameters

Top Speed

120 km/h

Type

Double-loop Pneumatic Braking

Type of Tires

11.00-20

Max Gradient

25%

Type of Brake

Drum Brake

Fuel Tank Capacity (L)

380L

Model of Gearbox

9JS119B

Parking Brake

Spring Type

Capacity of Batteries (Ah)

135 Ah

Gears

9

Emergency Brake

Spring Type

Drive Axle Ratio

4.44
